Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 E4 2017-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

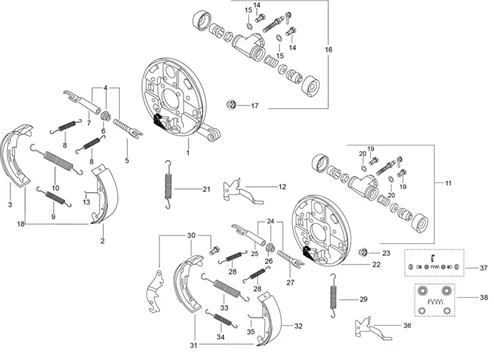

Instalation du freins - transmisisons : 05.07 MÂCHOIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/815/Ape_Classic_400_E4_2017-2018_05.07.png)
1 |
616541 - DISQUE PATIN FREIN More informationQuantity required : 1 |
||||||
|
2 |
B003784 - PATIN FREIN AVANT GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/0/img/151190.JPG)
3 |
940004 - JEU MACHOIRES More informationQuantity required : 1 |
||||||
|
4 |
179056 - FOURCHE COMPLETE More informationQuantity required : 1 |
||||||
|
8 |
602497 - PINCE DE RETENUE MACHOIRES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/3/3/img/110533.jpg)
9 |
116088 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/7/8/img/111378.jpg)
10 |
BRAKE SHOE SPRING "PIAGGIO GENUINE PART" APE -245038- More informationQuantity required : 1 |
||||||
|
11 |
632148 - CYLINDRE FREIN AR More informationQuantity required : 1 |
||||||
|
12 |
178807 - LEVIER FREIN More informationQuantity required : 1 |
||||||
|
13 |
178823 - PONT G. More informationQuantity required : 1 |
||||||
|
13 |
178824 - PONT D. More informationQuantity required : 1 |
||||||
|
14 |
063440 - VIS More informationQuantity required : 1 |
||||||
|
15 |
012536 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/0/3/img/116303.jpg)
16 |
587616 - CYLINDRE FREIN More informationQuantity required : 1 |
||||||
|
18 |
940004 - JEU MACHOIRES More informationQuantity required : 1 |
||||||
|
19 |
063440 - VIS More informationQuantity required : 1 |
||||||
|
20 |
012536 - RONDELLE More informationQuantity required : 1 |
||||||
|
21 |
178808R - RESSORT More informationQuantity required : 1 |
||||||
|
22 |
602120 - DISQUE PATIN FREIN More informationQuantity required : 1 |
||||||
|
22 |
602123 - DISQUE More informationQuantity required : 1 |
||||||
|
24 |
179056 - FOURCHE COMPLETE More informationQuantity required : 1 |
||||||
|
25 |
179057 - FOURCHE COMPLETE More informationQuantity required : 1 |
||||||
|
28 |
602497 - PINCE DE RETENUE MACHOIRES More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/6/2/7/img/117627.JPG)
30 |
940005 - KIT PATIN FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/6/2/6/img/117626.JPG)
30 |
940006 - KIT PATIN FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
31 |
940006 - KIT PATIN FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
31 |
940005 - KIT PATIN FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
31 |
B003784 - PATIN FREIN AVANT GAUCHE More informationQuantity required : 1 |
||||||
|
32 |
B003784 - PATIN FREIN AVANT GAUCHE More informationQuantity required : 1 |
||||||
|
33 |
BRAKE SHOE SPRING "PIAGGIO GENUINE PART" APE -245038- More informationQuantity required : 1 |
||||||
|
34 |
116088 - RESSORT More informationQuantity required : 1 |
||||||
|
35 |
178824 - PONT D. More informationQuantity required : 1 |
||||||
|
35 |
178823 - PONT G. More informationQuantity required : 1 |
||||||
|
36 |
178807 - LEVIER FREIN More informationQuantity required : 1 |
||||||
|
38 |
925574 - KIT REVISION More informationQuantity required : 1 |
