Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 E4 2017-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

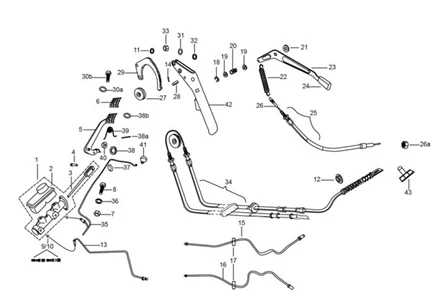

Instalation du freins - transmisisons : 05.05 SYSTÈME DE FREINAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/815/Ape_Classic_400_E4_2017-2018_05.05.png)
1 |
604615 - POMPE FREIN More informationQuantity required : 1 |
||||||
|
2 |
587773 - RESERVOIR HUILE More informationQuantity required : 1 |
||||||
|
3 |
587702 - POMPE FREINS More informationQuantity required : 1 |
||||||
|
4 |
604760 - PEDALE DE FREIN More informationQuantity required : 1 |
||||||
|
5 |
567461 - TAMPON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
6 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/9/img/65649.jpg)
7 |
031122 - BOULON FIX BRAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
8 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 2 |
||||||
|
11 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 1 |
||||||
|
12 |
604502 - BOUCHON More informationQuantity required : 2 |
||||||
|
13 |
660333 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/3/img/65353.JPG)
14 |
012761 - GOUPILLE S01276100 More informationQuantity required : 1 |
||||||
|
15 |
644813 - TUYAU DE FREIN ROUE ARRIERE GAUCHE More informationQuantity required : 1 |
||||||
|
16 |
644812 - TUYAU DE FREIN ROUE ARRIERE DROITE More informationQuantity required : 1 |
||||||
|
17 |
116971 - GARNITURE ABOLIE More informationQuantity required : 1 |
||||||
|
18 |
005969 - CIRCLIPS S00596900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/4/img/63804.JPG)
19 |
006173 - RONDELLE S00617300 More informationQuantity required : 1 |
||||||
|
20 |
108785 - RESSORT More informationQuantity required : 1 |
||||||
|
21 |
B042317 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
22 |
567690 - RESSORT More informationQuantity required : 1 |
||||||
|
23 |
125411 - LEVIER More informationQuantity required : 1 |
||||||
|
24 |
604717 - POMELLO More informationQuantity required : 1 |
||||||
|
25 |
660356 - TRANSMISSION More informationQuantity required : 1 |
||||||
|
26 |
660358 - TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
26 |
020105 - ECROU S02010500 More informationQuantity required : 2 |
||||||
|
27 |
567898 - POULIE More informationQuantity required : 1 |
||||||
|
28 |
567899 - POULIE More informationQuantity required : 1 |
||||||
|
29 |
B042794 - SECTEUR More informationQuantity required : 1 |
||||||
|
30 |
140728 - RONDELLE 8.5 X 24 X 3 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
30 |
031119 - BOULON More informationQuantity required : 1 |
||||||
|
31 |
006173 - RONDELLE S00617300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/1/img/63811.jpg)
32 |
CIRCLIP FOR KICK STARTER Ø11 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -006411- More informationQuantity required : 1 |
||||||
|
33 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 1 |
||||||
|
34 |
660341 - TRANSMISSION More informationQuantity required : 1 |
||||||
|
35 |
568161 - TUYAU More informationQuantity required : 1 |
||||||
|
36 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/7/7/img/109777.JPG)
37 |
006414 - CIRCLIPS S00641400 More informationQuantity required : 1 |
||||||
|
38 |
568737 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
38 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
|
38 |
843000809 - ANNEAU More informationQuantity required : 1 |
||||||
|
39 |
587928 - RESSORT More informationQuantity required : 1 |
||||||
|
40 |
229524 - RONDELLE More informationQuantity required : 1 |
||||||
|
41 |
138237 - CAPUCHON More informationQuantity required : 1 |
||||||
|
42 |
567746G1 - LEVIER DU FREIN More informationQuantity required : 1 |
||||||
|
43 |
119278 - EMBOUT More informationQuantity required : 1 |
