Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 E4 2017-2018 PIAGGIO VU

Moteur : 01.05 GROUPE CYLINDRE-PISTON-AXE

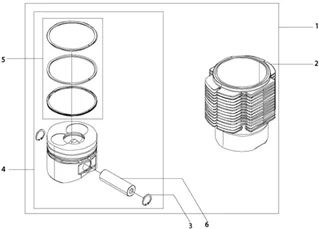

Groupe cylindre-piston-axe
Search
E10A050007 - CYLINDRE CPLT

1
P2R reference P2R reference 154118
Maker reference Maker reference E10A050007

E10A050007 - CYLINDRE CPLT

More information

Quantity required : 1
E10M030002 - GR.CIL. A

2
P2R reference P2R reference 154119
Maker reference Maker reference E10M030002

E10M030002 - GR.CIL. A

More information

Quantity required : 1
E3124017 - CIRCLIPS

3
P2R reference P2R reference 110265
Maker reference Maker reference E3124017

E3124017 - CIRCLIPS

More information

Quantity required : 2
E10A050001 - PISTON

4
P2R reference P2R reference 154120
Maker reference Maker reference E10A050001

E10A050001 - PISTON

More information

Quantity required : 1
E43511440 -

5
P2R reference P2R reference 120032
Maker reference Maker reference E43511440

E43511440 -

More information

Quantity required : 1
E5408480091 - SPINOTTO

6
P2R reference P2R reference 116377
Maker reference Maker reference E5408480091

E5408480091 - SPINOTTO

More information

Quantity required : 1
