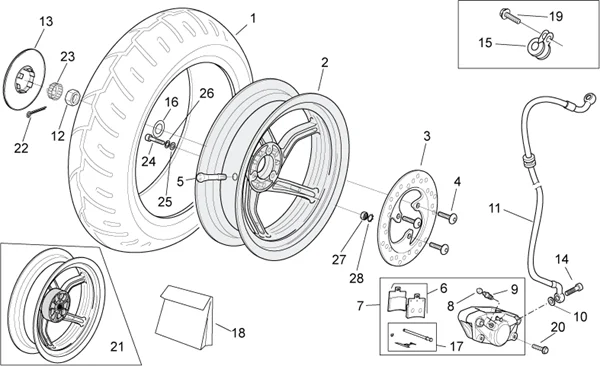

Vehicle Exploded View - APRILIA SR 50 H20 New IE Carb 2004-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Chassis : 28.31 ROUE POSTERIEURE - F.D.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/734/SR_50_H20_New_IE_Carb_2004-2009_28.31.PNG)
1 |
AP8209085 - PNEU AVANT/ARRIERE More informationQuantity required : 1 |
||||||
|
2 |
AP8208906 - RUOTA POST.NUDA BLU More informationQuantity required : 1 |
||||||
|
2 |
AP8208923 - REAR WHEEL, BLUE More informationQuantity required : 1 |
||||||
|
2 |
AP8128218 - ROUE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/2/9/img/48729.jpg)
3 |
REAR BRAKE DISC "PIAGGIO GENUINE PART" APRILIA 125-250-300 2006>2012 ATLANTIC, 50 SR H2O 2010> -AP8133601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
4 |
SCREW - (8X30) MULTI PURPOSE "PIAGGIO GENUINE PART" -AP8152288 More informationQuantity required : 3 |
||||||
|
4 |
AP8152504 - VITE TEF M8X25 CON FRENAFILET More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
5 |
AP8201546 - SOUPAPE TUBELESS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/2/9/img/71329.jpg)
6 |
REAR BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC, SPORT-CITY, SCARABEO, 125 LEONARDO, SPORT CITY-STREET -AP8113869 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/1/img/72221.jpg)
6 |
REAR BRAKE PADS-"PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC 2010> (PAIR) -AP8213577 More informationQuantity required : 1 |
||||||
|
7 |
AP8213522 - PINZA FRENO POST.V.ORO D.30 More informationQuantity required : 1 |
||||||
|
7 |
AP8213557 - PINZA FRENO POST.V.ORO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
8 |
AP8113005 - CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
|
8 |
AP8213575 - CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/5/img/71285.jpg)
9 |
SCREW - DRAIN SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER/MAXISCOOTER APRILIA -AP8113006- More informationQuantity required : 1 |
||||||
|
9 |
AP8213574 - SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
10 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
|
11 |
REAR BRAKE HOSE "PIAGGIO GENUINE PART" APRILIA 50 SR H2O 2004>2009 -AP8213548- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
12 |
NUT - (16X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -563728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/3/img/146193.jpg)
12 |
NUT - FOR REAR/FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 125-350-500 X10/APRILIA 50 SCARABEO, SR H2O -1C002565 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/1/2/img/56212.jpg)
13 |
AP8208907 - TAPPO RUOTA POST.BLU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
14 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
|
15 |
AP8134167 - PLAQUETTE TUYAU FREIN; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/7/img/65757.jpg)
16 |
REAR WHEEL WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -159347 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/3/1/img/71331.jpg)
17 |
AP8113871 - GOUJON+RESSORT PINCE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/2/img/72222.jpg)
17 |
REAR BRAKE SPRING KIT "PIAGGIO GENUINE PART" APRILIA 125-250-300 SPORT-CITY, ATLANTIC, SCARABEO -AP8213578- More informationQuantity required : 1 |
||||||
|
18 |
498850 - KIT REVISION ETRIER More informationQuantity required : 1 |
||||||
|
18 |
AP8213579 - KIT REVISIONE PINZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
19 |
AP8152277 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
20 |
SCREW - (8X30) MULTI PURPOSE "PIAGGIO GENUINE PART" -AP8152288 More informationQuantity required : 2 |
||||||
|
21 |
AP8208942 - ROUE ARR. More informationQuantity required : 1 |
||||||
|
21 |
AP8208949 - ROUE ARRIERE NUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
22 |
REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
23 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
|
23 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
|
24 |
AP8150086 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
25 |
AP8150020 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
26 |
AP8150292 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 3 |
||||||
|
27 |
AP8225319 - ECROU More informationQuantity required : 3 |
||||||
|
28 |
AP8225322 - RONDELLE More informationQuantity required : 3 |
