Vehicle Exploded View - APRILIA SR 50 H20 New IE Carb 2004-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

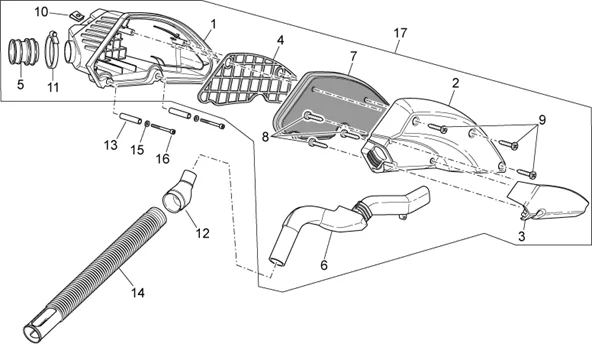

Chassis : 28.24 CORPS FILTRE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/734/SR_50_H20_New_IE_Carb_2004-2009_28.24.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/0/0/0/0/img/60000.jpg)
1 |
FILTER HOUSING BASE "PIAGGIO GENUINE PART" APRILIA 50 SR H2O -AP8268325 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/0/0/0/1/img/60001.jpg)
2 |
AIR BOX COVER "PIAGGIO GENUINE PART" APRILIA 50 SR H2O -AP8268326 More informationQuantity required : 1 |
||||||
3 |
AP8268327 - COPERCHIETTO More informationQuantity required : 1 |
||||||
|
4 |
AP8268328 - RETE FILTRO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/8/2/img/56982.jpg)
5 |
AP8220706 - MANICOTTO CASSA FILTRO/CARB. More informationQuantity required : 1 |
||||||
|
6 |
AP8220707 - MANICOTTO ASPIRAZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/6/img/72156.jpg)
7 |
AP8202443 - FILTRO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
8 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
9 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
10 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 1 |
||||||
|
11 |
AP8220104 - COLLIER More informationQuantity required : 1 |
||||||
|
12 |
AP8202444 - RACCORDO ASPIRAZIONE CASSA F. More informationQuantity required : 1 |
||||||
|
13 |
AP8121984 - ENTRETOISE; More informationQuantity required : 2 |
||||||
|
14 |
AP8220605 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
15 |
AP8150014 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/4/img/50844.jpg)
16 |
AP8150157 - VIS More informationQuantity required : 2 |
||||||
|
17 |
AP8268027 - CASSA FILTRO COMPLETA More informationQuantity required : 1 |
