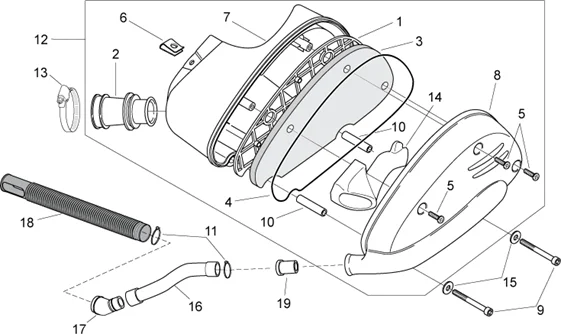

Chassis : 28.25 CORPS FILTRE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/734/SR_50_H20_New_IE_Carb_2004-2009_28.25.PNG)
1 |
AP8258242 - GRIL.SUPORT FILTRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/3/6/img/56936.jpg)
2 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" APRILIA 50 SR H2O 2000> -AP8220587 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/8/7/img/157087.jpg)
3 |
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM PIAGGIO APRILIA 50 SR CARBU 2014>, SR H2O 2000>2013, SR DITECK 2000>2004 -AP82023020P More informationQuantity required : 1 |
||||||
|
4 |
890513 - JOINT D.4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
5 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 1 |
||||||
|
7 |
AP8249298 - CORPS FILTRE; More informationQuantity required : 1 |
||||||
|
8 |
AP8249299 - COUVERCLE CORPS FILTRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/4/img/50844.jpg)
9 |
AP8150157 - VIS More informationQuantity required : 2 |
||||||
|
10 |
AP8121984 - ENTRETOISE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
11 |
AP8120416 - COLLIER, NOIR More informationQuantity required : 2 |
||||||
|
12 |
AP8258241 - CAISSE FILTRE COMPLETE; More informationQuantity required : 1 |
||||||
|
13 |
AP8220104 - COLLIER More informationQuantity required : 1 |
||||||
|
14 |
AP8220608 - CORPS FILTRE MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
15 |
AP8150014 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/8/6/img/56986.jpg)
16 |
INTAKE HOSE - AIRBOX "PIAGGIO GENUINE PART" APRILIA 50 SR H2O -AP8220712- More informationQuantity required : 1 |
||||||
|
17 |
AP8202444 - RACCORDO ASPIRAZIONE CASSA F. More informationQuantity required : 1 |
||||||
|
18 |
AP8220605 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/6/4/img/56964.jpg)
19 |
AP8220647 - MANICOTTO RIDUZIONE CASSA F. More informationQuantity required : 1 |
