Vehicle Exploded View - APRILIA SR 50 H20 New IE Carb 2004-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

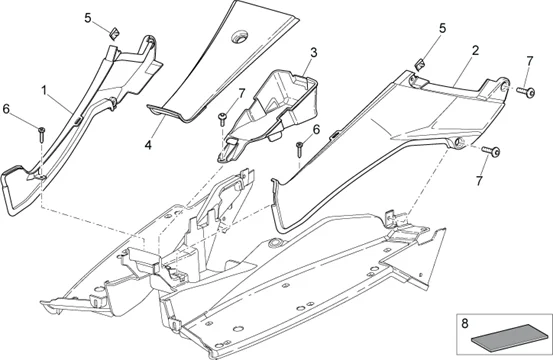

Chassis : 28.10 CARROSSERIE CENTRALE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/734/SR_50_H20_New_IE_Carb_2004-2009_28.10.PNG)
1 |
RIGHT TUNNEL - GREY "PIAGGIO GENUINE PART" APRILIA 50 SR H2O 2004>2014 -AP8268061- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/5/5/3/img/155553.jpg)
2 |
1B005147 - TUNNEL GCHE, NOIR More informationQuantity required : 1 |
||||||
|
2 |
1B005147 - TUNNEL GCHE, NOIR More informationQuantity required : 1 |
||||||
|
2 |
1B005147 - TUNNEL GCHE, NOIR More informationQuantity required : 1 |
||||||
|
3 |
AP8268046 - VANO PORTATTREZZI More informationQuantity required : 1 |
||||||
|
4 |
AP8268068 - COUVERCLE TUNNEL, More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
6 |
AP8152351 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
7 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298 More informationQuantity required : 5 |
||||||
|
8 |
AP8117040 - More informationQuantity required : 1 |
