Vehicle Exploded View - APRILIA SR 50 H20 New IE Carb 2004-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

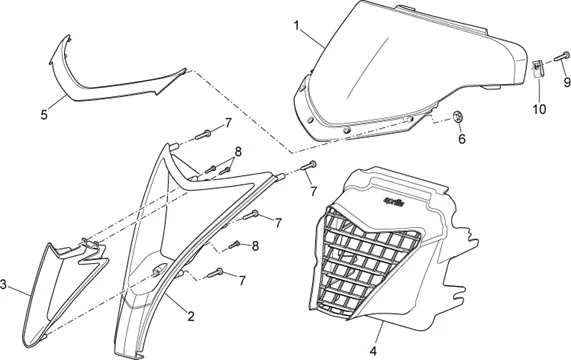

Chassis : 28.07 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/734/SR_50_H20_New_IE_Carb_2004-2009_28.07.PNG)
1 |
AP8179906 - COVERING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/8/2/8/img/59828.jpg)
1 |
AP8268059 - COFANO ANT.V. More informationQuantity required : 1 |
||||||
|
1 |
AP8268297 - COFANO ANT.V.NERO APRILIA More informationQuantity required : 1 |
||||||
|
1 |
AP8268340 - COFANO ANT.V.BLU LIMIT. More informationQuantity required : 1 |
||||||
|
1 |
AP8268728 - QUEUE, ROUGE More informationQuantity required : 1 |
||||||
|
1 |
AP8268879 - COFFRE SILVER More informationQuantity required : 1 |
||||||
|
1 |
AP8268890 - COFFRE AV ORANGE More informationQuantity required : 1 |
||||||
|
1 |
AP8268898 - COFFRE, BLANC More informationQuantity required : 1 |
||||||
|
1 |
AP8268991 - COFFRE AV., NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8269183 - COFFRE, BLANC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/9/7/9/img/59979.jpg)
2 |
AP8268292 - CORNICE GRIGLIA NERA More informationQuantity required : 1 |
||||||
|
2 |
AP8269187 - ENJOLIV. GRILLE More informationQuantity required : 1 |
||||||
|
3 |
AP8268054 - GRIGLIA RADIATORE More informationQuantity required : 1 |
||||||
|
4 |
AP8268078 - CONVOGLIATORE RADIATORE More informationQuantity required : 1 |
||||||
|
5 |
AP8179907 - COVERING RED More informationQuantity required : 1 |
||||||
|
5 |
AP8268077 - MASCHERINA COFANO More informationQuantity required : 1 |
||||||
|
5 |
AP8268298 - MASCHERINA COFANO V.ARAN.SPEED More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/9/9/0/img/59990.jpg)
5 |
AP8268309 - MASCHERINA COFANO V.BIANCO AP. More informationQuantity required : 1 |
||||||
|
5 |
AP8268341 - MASCHERINA COFANO V.BLU LIMIT. More informationQuantity required : 1 |
||||||
|
5 |
AP8268567 - MASCHERINA COFANO V.SILV.MIRR. More informationQuantity required : 1 |
||||||
|
5 |
AP8268577 - MASCHERINA COFANO V.NERO DIAB. More informationQuantity required : 1 |
||||||
|
5 |
AP8268587 - MASCHERINA COFANO V.GIALLO LIM More informationQuantity required : 1 |
||||||
|
5 |
AP8268873 - CACHE SUP.COFFRE, SILVER More informationQuantity required : 1 |
||||||
|
5 |
AP8268886 - CACHE SUP.COFFRE, ORANGE More informationQuantity required : 1 |
||||||
|
5 |
AP8268984 - CACHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
6 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
8 |
AP8150421 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
9 |
AP8152351 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
10 |
AP8202449 - CLIP X VITE AUTOFIL.D.4,2 More informationQuantity required : 2 |
