Vehicle Exploded View - APRILIA SR 50 H20 New IE Carb 2004-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

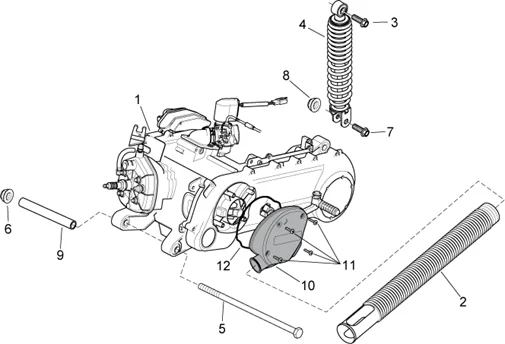

Moteur : 29.27 MOTEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/734/SR_50_H20_New_IE_Carb_2004-2009_29.27.PNG)
1 |
CM1439035 - MOTEUR 50 2T E2 H2O APRILIA "SR" X RIC. More informationQuantity required : 1 |
||||||
|
2 |
AP8220704 - MANICOTTO ASP.VARIATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/5/img/71965.jpg)
3 |
AP8152318 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
4 |
REAR SHOCK ABSORBER "PIAGGIO GENUINE PART" APRILIA 50 SR 2003>2012 -668009- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/2/img/50872.jpg)
5 |
AP8150412 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
6 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
7 |
AP8152410 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
8 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
9 |
AP8221347 - DISTANZIALE MOTORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/7/img/66617.jpg)
10 |
VARIATOR AIRFLOW COVER "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER -482404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/8/img/97088.jpg)
11 |
AP8150515 - VITE AUTOMASCHIANTE M5 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/8/img/66618.jpg)
12 |
482432 - JOINT More informationQuantity required : 1 |
