Vehicle Exploded View - APRILIA SR 50 H20 New IE Carb 2004-2009 APRILIA

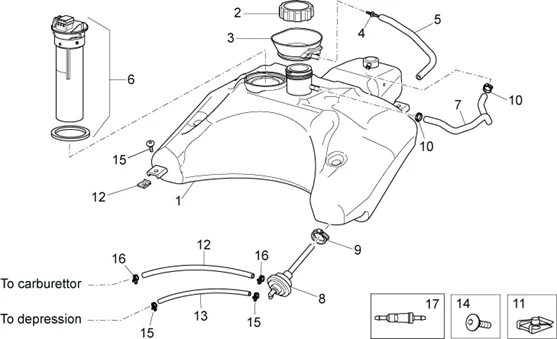

Chassis : 28.22 RÉSERVOIR ESSENCE II
Réservoir essence II
Search
AP8268174 - SERBATOIO BENZINA

1
P2R reference P2R reference 59894
Maker reference Maker reference AP8268174

AP8268174 - SERBATOIO BENZINA

More information

Quantity required : 1

AP8144343 - BOUCHON ESSENCE

2
P2R reference P2R reference 49700
Maker reference Maker reference AP8144343

AP8144343 - BOUCHON ESSENCE

More information

Quantity required : 1

AP8144187 - CAOUTCHOUC COLLECTE ESSENCE;

3
P2R reference P2R reference 71753
Maker reference Maker reference AP8144187

AP8144187 - CAOUTCHOUC COLLECTE ESSENCE;

More information

Quantity required : 1

2 WAY UNION (FOR FUEL) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8101944

4
P2R reference P2R reference 71166
Maker reference Maker reference AP8101944

2 WAY UNION (FOR FUEL) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8101944

More information

Quantity required : 1

896570 - TUYAU

5
P2R reference P2R reference 70870
Maker reference Maker reference 896570

896570 - TUYAU

More information

Quantity required : 1

CM086813 - INDICATEUR NIVEAU CARBURANT

6
P2R reference P2R reference 62743
Maker reference Maker reference CM086813

CM086813 - INDICATEUR NIVEAU CARBURANT

More information

Quantity required : 1

FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544

7
P2R reference P2R reference 70868
Maker reference Maker reference 896544

FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544

More information

Quantity required : 1

AP8201824 - ROBINET ESSENCE A DEPRESS.

8
P2R reference P2R reference 55395
Maker reference Maker reference AP8201824

AP8201824 - ROBINET ESSENCE A DEPRESS.

More information

Quantity required : 1

AP8101573 - COLLIER

9
P2R reference P2R reference 71152
Maker reference Maker reference AP8101573

AP8101573 - COLLIER

More information

Quantity required : 1

AP8102738 - COLLIER SERR. TUBE

10
P2R reference P2R reference 71196
Maker reference Maker reference AP8102738

AP8102738 - COLLIER SERR. TUBE

More information

Quantity required : 2

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375

11
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375

More information

Quantity required : 3

AP8220402 - TUYAU

12
P2R reference P2R reference 72283
Maker reference Maker reference AP8220402

AP8220402 - TUYAU

More information

Quantity required : 1

896570 - TUYAU

13
P2R reference P2R reference 70870
Maker reference Maker reference 896570

896570 - TUYAU

More information

Quantity required : 1

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298

14
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298

More information

Quantity required : 3

AP8120179 - COLLIER

15
P2R reference P2R reference 71388
Maker reference Maker reference AP8120179

AP8120179 - COLLIER

More information

Quantity required : 2

AP8102811 - COLLIER

16
P2R reference P2R reference 45230
Maker reference Maker reference AP8102811

AP8102811 - COLLIER

More information

Quantity required : 2

FUEL FILTER "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, TYPHOON, VESPA LX, VESPA-S/GILERA 50 STALKER, SMT, RCR/APRILIA 50 SPORT-CITY, SCARABEO -624522

17
P2R reference P2R reference 67776
Maker reference Maker reference 624522

FUEL FILTER "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, TYPHOON, VESPA LX, VESPA-S/GILERA 50 STALKER, SMT, RCR/APRILIA 50 SPORT-CITY, SCARABEO -624522

More information

Quantity required : 1
