Vehicle Exploded View - DERBI SENDA R 125 cc 4T 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

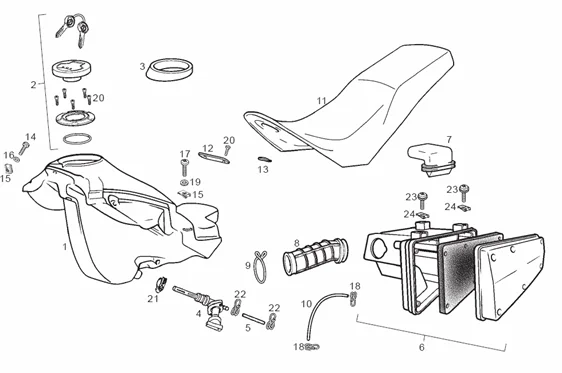

Tables : 4 RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1068/SENDA_R_125cc_4T_2004-2007_4.png)
1 |
00H00408011 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
00H00400131 - ENS.BOUCHON RESERV.ESSENCE V.B More informationQuantity required : 1 |
||||||
|
3 |
865968 - ADORNO TAPON DPSTO.GASOL.DRD125 09 More informationQuantity required : 1 |
||||||
|
4 |
00H00404181 - ENSEMBLE ROBINET ESSENCE More informationQuantity required : 1 |
||||||
|
5 |
00F00403321 - TUBE ESSENCE More informationQuantity required : 1 |
||||||
|
6 |
00H01805541 - ENSEMBLE BOITE FILTRE More informationQuantity required : 1 |
||||||
|
7 |
00H03204491 - TUBE DIASPIRATION More informationQuantity required : 1 |
||||||
|
8 |
00H03208261 - TUYAU DIADMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/0/img/64080.jpg)
9 |
CLAMP FOR AIRBOX JUNCTION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00G03204272- More informationQuantity required : 1 |
||||||
|
10 |
00H03701461 - TUYAU More informationQuantity required : 1 |
||||||
|
11 |
8633920001 - SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/7/8/5/img/187785.JPG)
12 |
00H06101261 - ENSEMBLE SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/8/2/img/64282.jpg)
13 |
FUEL TRAPDOOR LEVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00604141- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
15 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
||||||
|
16 |
00H00500211 - RONDELLE More informationQuantity required : 1 |
||||||
|
17 |
00012151500 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
|
18 |
00H06400291 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
19 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/2/img/63932.jpg)
21 |
00G00400501 - COLLIER More informationQuantity required : 1 |
||||||
|
22 |
00A00410501 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
23 |
SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
24 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
