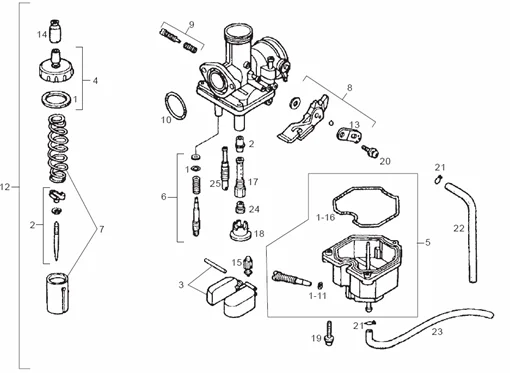

Tables : 28 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1068/SENDA_R_125cc_4T_2004-2007_28.png)
1 |
495477 - SERIE JOINT More informationQuantity required : 1 |
||||||
|
2 |
495478 - POINTEAU More informationQuantity required : 1 |
||||||
|
3 |
495479 - FLOTTEUR More informationQuantity required : 1 |
||||||
|
4 |
495480 - COUVERCLE More informationQuantity required : 1 |
||||||
|
5 |
495481 - CUVETTE More informationQuantity required : 1 |
||||||
|
6 |
495482 - JEU VIS More informationQuantity required : 1 |
||||||
|
7 |
495483 - VOLET GAZ More informationQuantity required : 1 |
||||||
|
8 |
495484 - JEU DE LEVIER More informationQuantity required : 1 |
||||||
|
9 |
495485 - VIS More informationQuantity required : 1 |
||||||
|
10 |
495487 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
11 |
495486 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
12 |
495488 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
13 |
495489 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
14 |
495490 - BOUCHON More informationQuantity required : 1 |
||||||
|
15 |
495491 - SOUPAPE More informationQuantity required : 1 |
||||||
|
16 |
495492 - JOINT More informationQuantity required : 1 |
||||||
|
17 |
495493 - JOINT More informationQuantity required : 1 |
||||||
|
18 |
495494 - PORTE GICLEUR More informationQuantity required : 1 |
||||||
|
19 |
495671 - VIS More informationQuantity required : 1 |
||||||
|
20 |
495675 - ECROU More informationQuantity required : 1 |
||||||
|
21 |
495686 - AGRAFE More informationQuantity required : 1 |
||||||
|
22 |
495688 - TUYAU More informationQuantity required : 1 |
||||||
|
23 |
495689 - TUYAU More informationQuantity required : 1 |
||||||
|
24 |
495705 - GICLEUR More informationQuantity required : 1 |
||||||
|
25 |
495706 - GICLEUR More informationQuantity required : 1 |
