Vehicle Exploded View - DERBI SENDA R 125 cc 4T 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

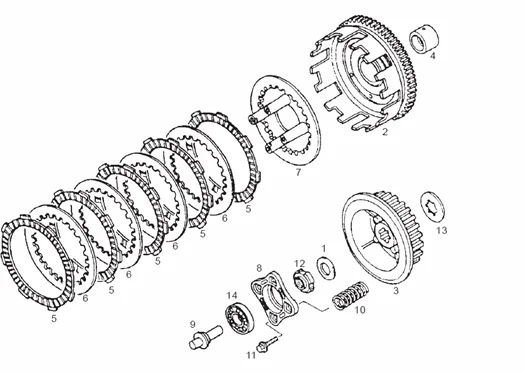

Tables : 18 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1068/SENDA_R_125cc_4T_2004-2007_18.png)
1 |
495473 - RONDELLE More informationQuantity required : 1 |
||||||
|
2 |
495504 - BOITE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
3 |
495505 - MOYEU EMBRAYAGE More informationQuantity required : 1 |
||||||
|
4 |
495506 - GUIDE More informationQuantity required : 1 |
||||||
|
5 |
495507 - DISQUE LIEGE More informationQuantity required : 1 |
||||||
|
6 |
495508 - DISQUE LISSE More informationQuantity required : 1 |
||||||
|
7 |
495509 - DISQUE More informationQuantity required : 1 |
||||||
|
8 |
495510 - PLATEAU More informationQuantity required : 1 |
||||||
|
9 |
495511 - TIGE More informationQuantity required : 1 |
||||||
|
10 |
495512 - RESSORT More informationQuantity required : 1 |
||||||
|
11 |
495592 - VIS More informationQuantity required : 1 |
||||||
|
12 |
495610 - ECROU More informationQuantity required : 1 |
||||||
|
13 |
495621 - RONDELLE EX 495622 More informationQuantity required : 1 |
||||||
|
14 |
495634 - ROULEMENT More informationQuantity required : 1 |
