Vehicle Exploded View - DERBI SENDA R 125 cc 4T 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

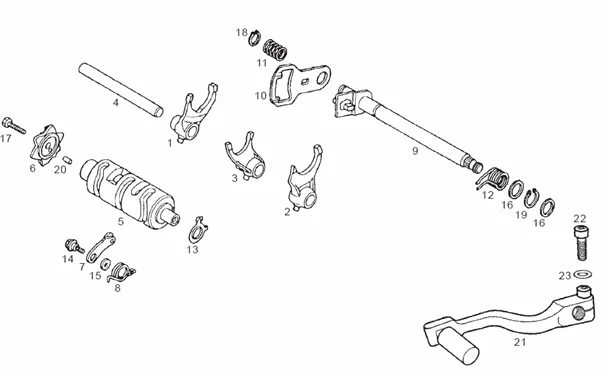

Tables : 27 TAMBOUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1068/SENDA_R_125cc_4T_2004-2007_27.png)
1 |
495535 - FOURCHE More informationQuantity required : 1 |
||||||
|
2 |
495536 - FOURCHE More informationQuantity required : 1 |
||||||
|
3 |
495537 - FOURCHE More informationQuantity required : 1 |
||||||
|
4 |
495568 - REGULATEUR M17 More informationQuantity required : 1 |
||||||
|
5 |
495539 - TAMBOUR VITESSE More informationQuantity required : 1 |
||||||
|
6 |
495540 - CAMME CH VITESSE More informationQuantity required : 1 |
||||||
|
7 |
495541 - BUTEE More informationQuantity required : 1 |
||||||
|
8 |
495542 - RESSORT More informationQuantity required : 1 |
||||||
|
9 |
495543 - AXE More informationQuantity required : 1 |
||||||
|
10 |
495544 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
11 |
495545 - RESSORT More informationQuantity required : 1 |
||||||
|
12 |
495546 - RESSORT More informationQuantity required : 1 |
||||||
|
13 |
495579 - CONTACT POINT MORT More informationQuantity required : 1 |
||||||
|
14 |
495587 - VIS More informationQuantity required : 1 |
||||||
|
15 |
495613 - RONDELLE More informationQuantity required : 1 |
||||||
|
16 |
495617 - RONDELLE More informationQuantity required : 1 |
||||||
|
17 |
495665 - VIS More informationQuantity required : 1 |
||||||
|
18 |
495683 - AGRAFE More informationQuantity required : 1 |
||||||
|
19 |
495684 - GRIFFE More informationQuantity required : 1 |
||||||
|
20 |
495701 - ROULEAU More informationQuantity required : 1 |
||||||
|
21 |
00H02705421 - PEDALE DE SELECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
22 |
AP8150165 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/0/img/63790.jpg)
23 |
00442060002 - RONDELLE A RESSORT D6 More informationQuantity required : 1 |
