Vehicle Exploded View - DERBI SENDA R 125 cc 4T 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

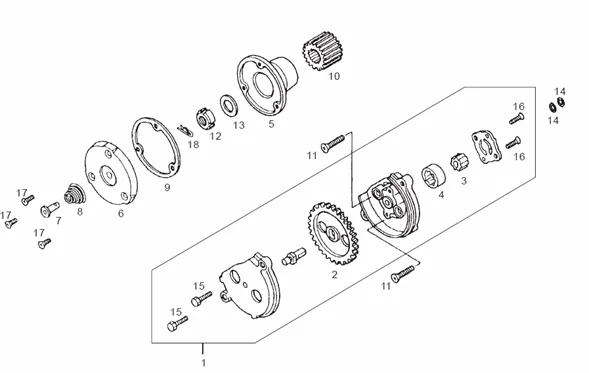

Tables : 19 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1068/SENDA_R_125cc_4T_2004-2007_19.png)
1 |
495463 - POMPE A HUILE More informationQuantity required : 1 |
||||||
|
2 |
495464 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
3 |
495465 - ROTOR More informationQuantity required : 1 |
||||||
|
4 |
495466 - ROTOR More informationQuantity required : 1 |
||||||
|
5 |
495469 - ROTOR FILTRE A HUILE More informationQuantity required : 1 |
||||||
|
6 |
495470 - COUVERCLE More informationQuantity required : 1 |
||||||
|
7 |
495471 - VALVE D HUILE More informationQuantity required : 1 |
||||||
|
8 |
495472 - RESSORT More informationQuantity required : 1 |
||||||
|
9 |
495474 - JOINT More informationQuantity required : 1 |
||||||
|
10 |
495517 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
11 |
495603 - ECROU More informationQuantity required : 1 |
||||||
|
12 |
495611 - ECROU More informationQuantity required : 1 |
||||||
|
13 |
495614 - RONDELLE More informationQuantity required : 1 |
||||||
|
14 |
495650 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
15 |
495663 - VIS More informationQuantity required : 1 |
||||||
|
16 |
495667 - VIS More informationQuantity required : 1 |
||||||
|
17 |
495669 - VIS More informationQuantity required : 1 |
||||||
|
18 |
495677 - AGRAFE More informationQuantity required : 1 |
