Vehicle Exploded View - DERBI SENDA R 125 cc 4T 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

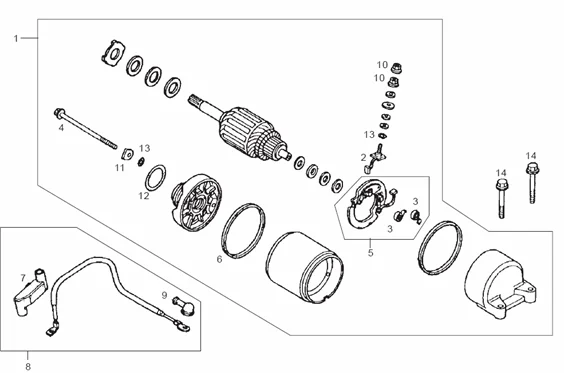

Tables : 23 DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1068/SENDA_R_125cc_4T_2004-2007_23.png)
1 |
495562 - DEMARREUR More informationQuantity required : 1 |
||||||
|
2 |
495181 - BALAI More informationQuantity required : 1 |
||||||
|
3 |
495182 - RESSORT More informationQuantity required : 1 |
||||||
|
4 |
495183 - VIS More informationQuantity required : 1 |
||||||
|
5 |
495184 - SUPPORT DES BALAI More informationQuantity required : 1 |
||||||
|
6 |
495185 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
7 |
495569 - COUVERCLE More informationQuantity required : 1 |
||||||
|
8 |
495570 - CÂBLE More informationQuantity required : 1 |
||||||
|
9 |
495188 - CAPUCHON More informationQuantity required : 1 |
||||||
|
10 |
495210 - ECROU More informationQuantity required : 1 |
||||||
|
11 |
495216 - PLAQUETTE EX 495605 More informationQuantity required : 1 |
||||||
|
12 |
495658 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
13 |
495271 - CIRCLIPS EX 495660 More informationQuantity required : 1 |
||||||
|
14 |
495691 - VIS More informationQuantity required : 1 |
