Vehicle Exploded View - DERBI SENDA R 125 cc 4T 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

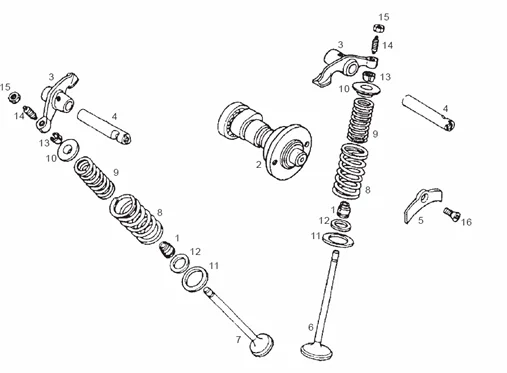

Tables : 14 GRIFFE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1068/SENDA_R_125cc_4T_2004-2007_14.png)
1 |
495427 - JOINT TIGE SOUPAPE More informationQuantity required : 1 |
||||||
|
2 |
495442 - ARBRE A CAMES More informationQuantity required : 1 |
||||||
|
3 |
495446 - BRAS CULBUTEUR More informationQuantity required : 1 |
||||||
|
4 |
495447 - AXE More informationQuantity required : 1 |
||||||
|
5 |
495448 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
6 |
495455 - SOUPAPE ADMISSION More informationQuantity required : 1 |
||||||
|
7 |
495456 - SOUPAPE ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
8 |
495457 - RESSORT EXT More informationQuantity required : 1 |
||||||
|
9 |
495458 - RESSORT INT More informationQuantity required : 1 |
||||||
|
10 |
495459 - AGRAFE More informationQuantity required : 1 |
||||||
|
11 |
495460 - SIEGE EXT SOUPAPE More informationQuantity required : 1 |
||||||
|
12 |
495461 - RONDELLE More informationQuantity required : 1 |
||||||
|
13 |
495462 - SIEGE INT SOUPAPE More informationQuantity required : 1 |
||||||
|
14 |
495586 - DEMI CONES More informationQuantity required : 1 |
||||||
|
15 |
495609 - VIS REGLAGE More informationQuantity required : 1 |
||||||
|
16 |
495668 - VIS More informationQuantity required : 1 |
