Vehicle Exploded View - APRILIA RX 50 Racing 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

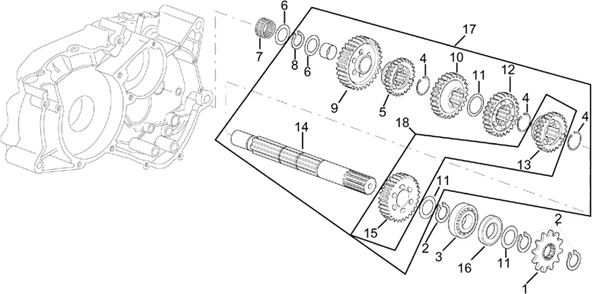

Moteur : 29.40 ARBRE SECONDAIRE BOITE DE VITESSES I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/682/RX_50_Racing_2003_29.40.PNG)
1 |
AP8206971 - PIGNON RENVOI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/1/2/img/61012.jpg)
2 |
OUTSIDE CIRCLIP Ø20 "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX 1993>2003 -AP8501477- More informationQuantity required : 3 |
||||||
|
3 |
AP8509135 - ROULEMENT More informationQuantity required : 1 |
||||||
|
4 |
AP8507866 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 3 |
||||||
|
5 |
AP8206615 - ENGR. 5E SUR SEC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/4/8/img/55948.jpg)
6 |
SECONDARY SHAFT WASHER (14.5X27X0.4) "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX, TUONO -AP8206633- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/7/1/img/55771.jpg)
7 |
ROLLER BEARING FOR SECONDARY SHAFT "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX, TUONO -AP8206281- More informationQuantity required : 1 |
||||||
|
8 |
AP8501478 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 1 |
||||||
|
9 |
AP8206611 - ENGR. 1E SUR SEC. More informationQuantity required : 1 |
||||||
|
10 |
AP8206613 - ENGR. 3E SUR SEC. More informationQuantity required : 1 |
||||||
|
11 |
AP8502501 - RONDELLE ACIER BLEU More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/3/0/img/55930.jpg)
12 |
SECONDARY 4ST WHEEL GEAR (Z 27) "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX, TUONO -AP8206614- More informationQuantity required : 1 |
||||||
|
13 |
AP8206616 - ENGR. 6E SUR SEC. More informationQuantity required : 1 |
||||||
|
14 |
AP8206605 - ARBRE SECONDAIRE NU More informationQuantity required : 1 |
||||||
|
15 |
AP8206612 - ENGR. 2E SUR SEC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/4/1/img/55941.jpg)
16 |
AP8206626 - JOINT SPI+PAREPOUSS. More informationQuantity required : 1 |
||||||
|
17 |
AP8206623 - ARBRE SECONDAIRE CPL. More informationQuantity required : 1 |
