Vehicle Exploded View - APRILIA RX 50 Racing 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

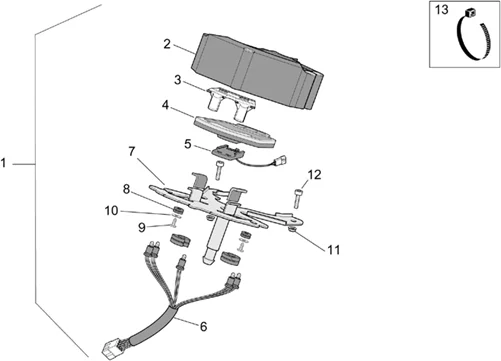

Chassis : 28.13 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/682/RX_50_Racing_2003_28.13.PNG)
1 |
AP8224582 - CRUSCOTTO COMPLETO More informationQuantity required : 1 |
||||||
|
2 |
AP8224575 - GUSCIO CRUSCOTTO More informationQuantity required : 1 |
||||||
|
3 |
AP8224613 - GUIDA LUCE More informationQuantity required : 1 |
||||||
|
4 |
AP8224582 - CRUSCOTTO COMPLETO More informationQuantity required : 1 |
||||||
|
5 |
AP8104744 - SLITTA STRUMENTO More informationQuantity required : 1 |
||||||
|
6 |
AP8224583 - GRUPPO CAVI/SPIE More informationQuantity required : 1 |
||||||
|
7 |
AP8234227 - PIASTRA SUPPORTO STRUMENTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
8 |
AP8120405 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.JPG)
10 |
AP8150159 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
11 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/1/img/71841.jpg)
12 |
AP8150220 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.JPG)
13 |
AP8120422 - COLLIER, NOIR More informationQuantity required : 2 |
