Vehicle Exploded View - APRILIA RX 50 Racing 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

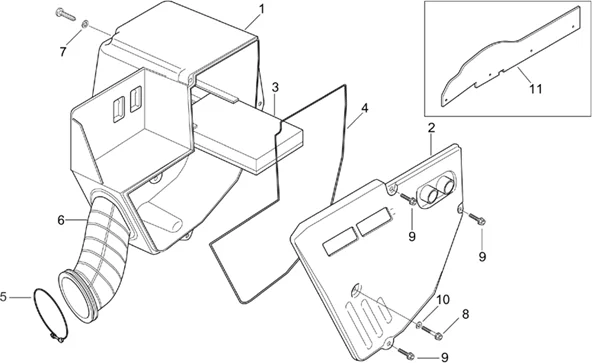

Chassis : 28.18 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/682/RX_50_Racing_2003_28.18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/2/img/72132.jpg)
3 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 50 RX, MX, PEGASO 1992>2004- -AP8201429- More informationQuantity required : 1 |
||||||
4 |
890513 - JOINT D.4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/9/1/img/55391.jpg)
5 |
AP8201799 - COLLIER DURITE More informationQuantity required : 1 |
||||||
|
6 |
AP8220642 - MANICOTTO CARBURATORE FILTRO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/6/img/71406.JPG)
7 |
AP8120592 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
8 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
9 |
AP8152280 - VIS BRIDE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.JPG)
10 |
AP8152181 - RONDELLE FER PLATE More informationQuantity required : 1 |
||||||
|
11 |
AP8268025 - PROTEZIONE SCATOLA FILTRO More informationQuantity required : 1 |
