Vehicle Exploded View - APRILIA RX 50 Racing 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

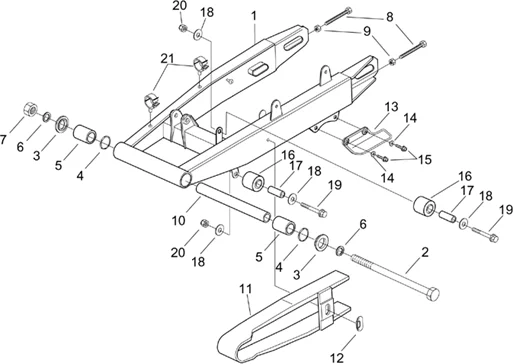

Chassis : 28.05 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/682/RX_50_Racing_2003_28.05.PNG)
2 |
AP8225070 - AXE BRAS OSC.+ECROU; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/1/img/56841.jpg)
3 |
AP8220196 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/3/img/56843.jpg)
4 |
AP8220198 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
5 |
AP8220197 - DOUILLE More informationQuantity required : 2 |
||||||
|
6 |
AP8152103 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/3/img/50843.JPG)
8 |
AP8150154 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/7/img/50827.JPG)
9 |
AP8150027 - ECROU More informationQuantity required : 2 |
||||||
|
10 |
AP8221103 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
11 |
AP8220259 - GALET GUIDE-CHA?NE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/6/8/img/97168.JPG)
12 |
AP8234020 - RONDELLE POUR PATIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/9/5/8/img/57958.jpg)
13 |
AP8230440 - PLAQUE CHA?NE More informationQuantity required : 1 |
||||||
|
14 |
AP8121035 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
15 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
16 |
AP8101375 - ROULETTE TENDEUR DE CHA?NE More informationQuantity required : 2 |
||||||
|
17 |
AP8121857 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
18 |
AP8150018 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/4/img/71954.jpg)
19 |
AP8152292 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
20 |
AP8150431 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/9/0/0/img/48900.jpg)
21 |
AP8134186 - GUIDE-CABLE; More informationQuantity required : 2 |
