Vehicle Exploded View - APRILIA RX 50 Racing 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

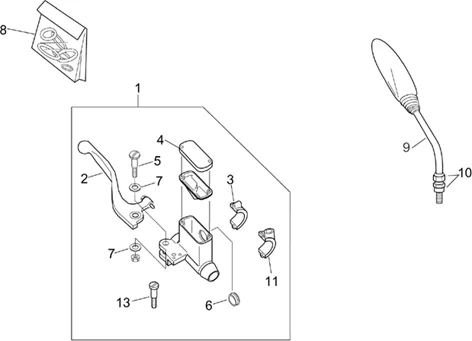

Chassis : 28.15 COMMANDES II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/682/RX_50_Racing_2003_28.15.PNG)
1 |
AP8213266 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/2/9/img/56429.jpg)
2 |
FRONT BRAKE LEVER- "PIAGGIO GENUINE PART" APRILIA 50 RX 1995>2004, MX 2002>2006 -AP8213342- More informationQuantity required : 1 |
||||||
|
3 |
AP8213078 - CAVALIER More informationQuantity required : 1 |
||||||
|
4 |
AP8213477 - COUVERCLE RESERVOIR; More informationQuantity required : 1 |
||||||
|
5 |
AP8213345 - PIVOT LEVIER FREIN More informationQuantity required : 1 |
||||||
|
6 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
8 |
AP8213343 - JOINTS-JEU More informationQuantity required : 1 |
||||||
|
9 |
AP8201984 - MIROIR RETROVISEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/3/5/img/45235.jpg)
10 |
MIRROR SUPPORT "PIAGGIO GENUINE PART" APRILIA 50-125 RX, SX, MX -AP8102825- More informationQuantity required : 1 |
||||||
|
11 |
AP8105153 - CAVALIER More informationQuantity required : 1 |
