Vehicle Exploded View - APRILIA RX 50 Racing 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

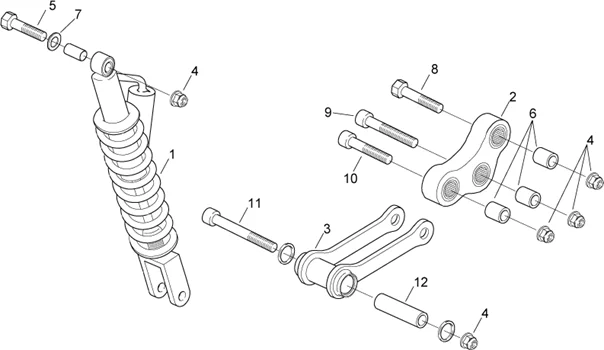

Chassis : 28.06 SUSPENSION ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/682/RX_50_Racing_2003_28.06.PNG)
1 |
AP8223067 - AMMORTIZZATORE More informationQuantity required : 1 |
||||||
|
2 |
AP8232497 - DOUBLE BIELLETTE; More informationQuantity required : 1 |
||||||
|
3 |
AP8232498 - BIELLET SIMPLE, NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
4 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 5 |
||||||
|
5 |
AP8150227 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/1/img/45821.jpg)
6 |
ROLLER BEARING FOR REAR SUSPENSION LINK "PIAGGIO GENUINE PART" APRILIA 50 MX, SX, RX, 125 RS, TUAREG, TUONO, PEGASO -AP8110063- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
7 |
AP8150020 - RONDELLE More informationQuantity required : 1 |
||||||
|
8 |
AP8150323 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
9 |
AP8150049 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/0/img/71860.JPG)
10 |
AP8150329 - VIS More informationQuantity required : 1 |
||||||
|
11 |
AP8150287 - VIS More informationQuantity required : 1 |
||||||
|
12 |
AP8221001 - ENTRETOISE More informationQuantity required : 1 |
