Vehicle Exploded View - APRILIA RX 50 Racing 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

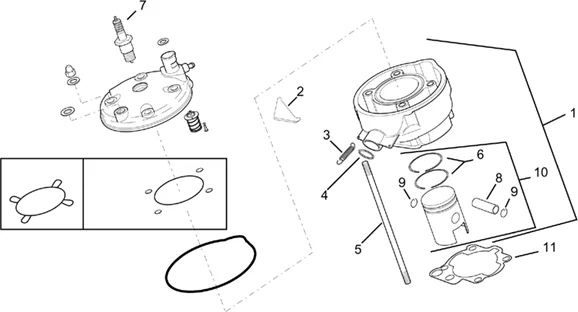

Moteur : 29.36 PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/682/RX_50_Racing_2003_29.36.PNG)
1 |
AP8206979 - CYLINDRE AV.PISTON More informationQuantity required : 1 |
||||||
|
2 |
AP8508882 - PLAQUE FIX.RESSORTS More informationQuantity required : 1 |
||||||
|
3 |
AP8507839 - RESS.FIX.TUY.ECHAP. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/0/9/7/img/56097.jpg)
4 |
AP8206976 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
5 |
AP8508553 - VIS SANS T?TE More informationQuantity required : 4 |
||||||
|
6 |
AP8206954 - SEGMENTS MAJ. More informationQuantity required : 1 |
||||||
|
6 |
AP8206953 - SEGMENTS MAJ. More informationQuantity required : 1 |
||||||
|
6 |
AP8206952 - SEGMENTS - SERIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/7/9/img/72179.jpg)
7 |
SPARK PLUG BR9ES "PIAGGIO GENUINE PART" COMMON TO ALL 50CC MOTORBIKES -AP8206915- More informationQuantity required : 1 |
||||||
|
8 |
AP8502846 - AXE More informationQuantity required : 1 |
||||||
|
9 |
AP8206019 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
|
10 |
AP8206955 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
10 |
AP8206956 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
10 |
AP8206957 - PISTON CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/8/0/img/55780.jpg)
11 |
AP8206292 - JOINT BASE CYLINDRE More informationQuantity required : 1 |
