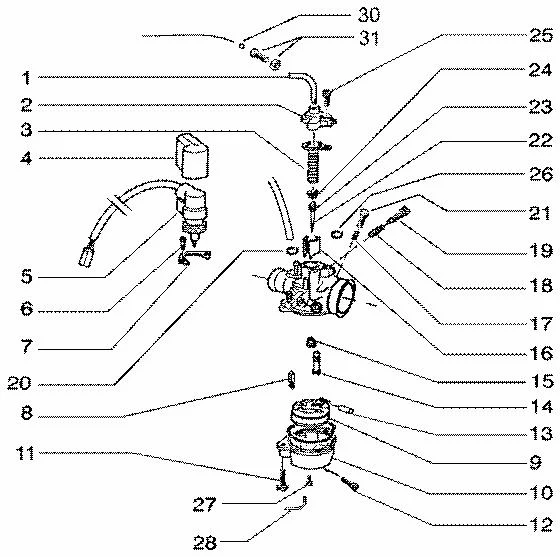

Vehicle Exploded View - GILERA RUNNER 50 Poggiali 1998-2005 GILERA

Moteur : T17 CARBURATEUR
Carburateur
Search
ANGLED GUIDING TUE FOR CARB "PIAGGIO GENUINE PART"COMMON FOR ALL SCOOTER 50 cc -113903-

1
P2R reference P2R reference 65699
Maker reference Maker reference 113903

ANGLED GUIDING TUE FOR CARB "PIAGGIO GENUINE PART"COMMON FOR ALL SCOOTER 50 CC -113903-

More information

Quantity required : 1
431654 - COUVERCLE CARBURATEUR QUARTZ

2
P2R reference P2R reference 66415
Maker reference Maker reference 431654

431654 - COUVERCLE CARBURATEUR QUARTZ

More information

Quantity required : 1
SPRING FOR CARB SLIDE "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/ GILERA 50 RCR, SMT, STALKER, RUNNER -479882

3
P2R reference P2R reference 66626
Maker reference Maker reference 482942

SPRING FOR CARB SLIDE "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/ GILERA 50 RCR, SMT, STALKER, RUNNER -479882

More information

Quantity required : 1
485671 - COIFFE

4
P2R reference P2R reference 66687
Maker reference Maker reference 485671

485671 - COIFFE

More information

Quantity required : 1
CHOKE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP, VESPA LX, PRIMAVERA/APRILIA 50 SR/GILERA 50 STALKER, RUNNER, DNA -CM105905-

5
P2R reference P2R reference 73087
Maker reference Maker reference CM105905

CHOKE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP, VESPA LX, PRIMAVERA/APRILIA 50 SR/GILERA 50 STALKER, RUNNER, DNA -CM105905-

More information

Quantity required : 1
289575 - VIS

6
P2R reference P2R reference 66228
Maker reference Maker reference 289575

289575 - VIS

More information

Quantity required : 2
CHOKE PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 stroke -288863-

7
P2R reference P2R reference 66201
Maker reference Maker reference 288863

CHOKE PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -288863-

More information

Quantity required : 1
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -CM128501-

8
P2R reference P2R reference 73146
Maker reference Maker reference CM128501

CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM128501-

More information

Quantity required : 1
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -482916-

9
P2R reference P2R reference 66625
Maker reference Maker reference 482916

CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -482916-

More information

Quantity required : 1
CARB FLOAT CHAMBER "PIAGGIO GENUINE PART" 50 ZIP, NRG, LIBERTY, FLY, VESPA LX/GILERA 50 RUNNER, STALKER/APRILIA 50 RS, SR -484704-

10
P2R reference P2R reference 66664
Maker reference Maker reference 484704

CARB FLOAT CHAMBER "PIAGGIO GENUINE PART" 50 ZIP, NRG, LIBERTY, FLY, VESPA LX/GILERA 50 RUNNER, STALKER/APRILIA 50 RS, SR -484704-

More information

Quantity required : 1
288862 - VIS

11
P2R reference P2R reference 66200
Maker reference Maker reference 288862

288862 - VIS

More information

Quantity required : 2
SCREW - FOR CARB BOWL "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -432456-

12
P2R reference P2R reference 66423
Maker reference Maker reference 432456

SCREW - FOR CARB BOWL "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -432456-

More information

Quantity required : 2
288881 - AXE FLOTTEUR

13
P2R reference P2R reference 66209
Maker reference Maker reference 288881

288881 - AXE FLOTTEUR

More information

Quantity required : 1
IDLE JET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -CM102103-

14
P2R reference P2R reference 73067
Maker reference Maker reference CM102103

IDLE JET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM102103-

More information

Quantity required : 1
CM101707 - GICL.MAXI

15
P2R reference P2R reference 73046
Maker reference Maker reference CM101707

CM101707 - GICL.MAXI

More information

Quantity required : 1
CARB THROTTLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -CM141710-

16
P2R reference P2R reference 73181
Maker reference Maker reference CM141710

CARB THROTTLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -CM141710-

More information

Quantity required : 1
085285 - RESSORT

17
P2R reference P2R reference 65670
Maker reference Maker reference 085285

085285 - RESSORT

More information

Quantity required : 1
152608 - VIS

18
P2R reference P2R reference 65751
Maker reference Maker reference 152608

152608 - VIS

More information

Quantity required : 1
SCREW - FOR INJECTION BODY ADJUSTING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 stroke -828074-

19
P2R reference P2R reference 68725
Maker reference Maker reference 828074

SCREW - FOR INJECTION BODY ADJUSTING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -828074-

More information

Quantity required : 1
CM002904 - COLLIER

20
P2R reference P2R reference 72891
Maker reference Maker reference CM002904

CM002904 - COLLIER

More information

Quantity required : 1
SCREW - CARB AIR SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 stroke -CM107701-

21
P2R reference P2R reference 73102
Maker reference Maker reference CM107701

SCREW - CARB AIR SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM107701-

More information

Quantity required : 1
NEEDLE FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50cc 2STROKE -CM107510-

22
P2R reference P2R reference 73100
Maker reference Maker reference CM107510

NEEDLE FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC 2STROKE -CM107510-

More information

Quantity required : 1
NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 cc -288872-

23
P2R reference P2R reference 66204
Maker reference Maker reference 288872

NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC -288872-

More information

Quantity required : 1
CONICAL PIN CLIP "PIAGGIO GENUINE PART" COMMON TO THE SCOOTER 50 CC RANGE -288873-

24
P2R reference P2R reference 66205
Maker reference Maker reference 288873

CONICAL PIN CLIP "PIAGGIO GENUINE PART" COMMON TO THE SCOOTER 50 CC RANGE -288873-

More information

Quantity required : 1
288865 - VIS

25
P2R reference P2R reference 66202
Maker reference Maker reference 288865

288865 - VIS

More information

Quantity required : 1
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901-

26
P2R reference P2R reference 72888
Maker reference Maker reference CM002901

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901-

More information

Quantity required : 1
OIL VALVE (ON CARB) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -436206-

27
P2R reference P2R reference 66485
Maker reference Maker reference 436206

OIL VALVE (ON CARB) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -436206-

More information

Quantity required : 1
CM112001 - TUBE VIDANGE CUVETTE

28
P2R reference P2R reference 73120
Maker reference Maker reference CM112001

CM112001 - TUBE VIDANGE CUVETTE

More information

Quantity required : 1
THROTTLE CABLE KIT ((FROM DISPATCHER TO CARB)) "PIAGGIO GENUINE PARTS" 50 ZIP SP, NRG MP3 1998>2005/GILERA 50 RUNNER 1998>2005 -582256-

29
P2R reference P2R reference 67250
Maker reference Maker reference 582256

THROTTLE CABLE KIT ((FROM DISPATCHER TO CARB)) "PIAGGIO GENUINE PARTS" 50 ZIP SP, NRG MP3 1998>2005/GILERA 50 RUNNER 1998>2005 -582256-

More information

Quantity required : 1
875551 - CAPUCHON

30
P2R reference P2R reference 70587
Maker reference Maker reference 875551

875551 - CAPUCHON

More information

Quantity required : 1
SCREW - FOR CABLE ADJUSTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288868-

31
P2R reference P2R reference 66203
Maker reference Maker reference 288868

SCREW - FOR CABLE ADJUSTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288868-

More information

Quantity required : 1
