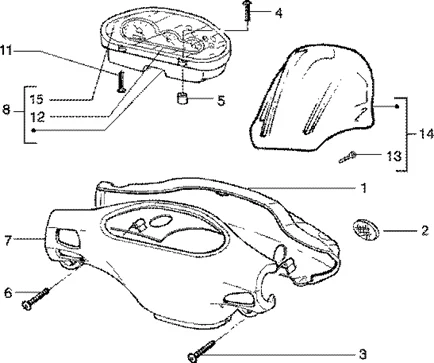

Vehicle Exploded View - GILERA RUNNER 50 Poggiali 1998-2005 GILERA

Châssis : T37 COMPTEUR KILOMETRIQUE-COUVERCLE DU GUIDON
Compteur kilometrique-couvercle du guidon
Search
56365750R7 - COUVRE GUIDON AV RUNNER ROUGE 894

1
P2R reference P2R reference 79941
Maker reference Maker reference 56365750R7

56365750R7 - COUVRE GUIDON AV RUNNER ROUGE 894

More information

Quantity required : 1
574502 - CACHE SUR GUIDON D

2
P2R reference P2R reference 80381
Maker reference Maker reference 574502

574502 - CACHE SUR GUIDON D

More information

Quantity required : 1
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

3
P2R reference P2R reference 66068
Maker reference Maker reference 267958

SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

More information

Quantity required : 2
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793-

4
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793-

More information

Quantity required : 2
297707 - MOYEU

5
P2R reference P2R reference 77946
Maker reference Maker reference 297707

297707 - MOYEU

More information

Quantity required : 2
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

6
P2R reference P2R reference 66068
Maker reference Maker reference 267958

SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958-

More information

Quantity required : 3
298148000C - CACHE DIRECTION INT

7
P2R reference P2R reference 77970
Maker reference Maker reference 298148000C

298148000C - CACHE DIRECTION INT

More information

Quantity required : 1
583994 - ????? RUNNER

8
P2R reference P2R reference 81993
Maker reference Maker reference 583994

583994 - ????? RUNNER

More information

Quantity required : 1
584047 - COMPTEUR KILOMETRIQUE

8
P2R reference P2R reference 82013
Maker reference Maker reference 584047

584047 - COMPTEUR KILOMETRIQUE

More information

Quantity required : 1
018544 - VIS

11
P2R reference P2R reference 65439
Maker reference Maker reference 0185445

018544 - VIS

More information

Quantity required : 2
494892 - COUVERCLE COMPTEUR C21-C22-C32

12
P2R reference P2R reference 79171
Maker reference Maker reference 494892

494892 - COUVERCLE COMPTEUR C21-C22-C32

More information

Quantity required : 1
494806 - GLACE COMPTEUR

12
P2R reference P2R reference 79162
Maker reference Maker reference 494806

494806 - GLACE COMPTEUR

More information

Quantity required : 1
SCREW - 3x20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146-

13
P2R reference P2R reference 66025
Maker reference Maker reference 258146

SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146-

More information

Quantity required : 2
581258 - PARE BRISE RUNNER 50 SP

14
P2R reference P2R reference 81536
Maker reference Maker reference 581258

581258 - PARE BRISE RUNNER 50 SP

More information

Quantity required : 1
497044 - COUVERCLE GROUPE INSTRUMENT

15
P2R reference P2R reference 79418
Maker reference Maker reference 497044

497044 - COUVERCLE GROUPE INSTRUMENT

More information

Quantity required : 1
497337 - DESSUS COMPTEUR

15
P2R reference P2R reference 79478
Maker reference Maker reference 497337

497337 - DESSUS COMPTEUR

More information

Quantity required : 1
