Vehicle Exploded View - GILERA RUNNER 50 Poggiali 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

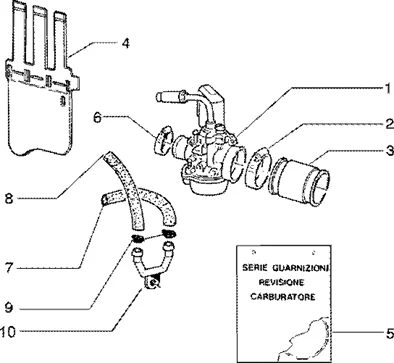

Moteur : T16 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/657/Runner_50_Poggiali_1998-2005_T16.PNG)
1 |
847562 - CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/9/img/65699.jpg)
1 |
ANGLED GUIDING TUE FOR CARB "PIAGGIO GENUINE PART"COMMON FOR ALL SCOOTER 50 CC -113903- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/5/img/66415.jpg)
2 |
431654 - COUVERCLE CARBURATEUR QUARTZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
2 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/6/img/66626.jpg)
3 |
SPRING FOR CARB SLIDE "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/ GILERA 50 RCR, SMT, STALKER, RUNNER -479882 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/3/img/66743.jpg)
3 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" 50 (COMMON TO ALL THE RANGE SCOOTER 50 CC 2 STROKE) -487592- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/7/img/66687.jpg)
4 |
485671 - COIFFE More informationQuantity required : 1 |
||||||
|
4 |
576359 - PARE BOUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/2/img/66972.jpg)
5 |
DELL'ORTO CARB GASKET SET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -498409- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/8/7/img/73087.jpg)
5 |
CHOKE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP, VESPA LX, PRIMAVERA/APRILIA 50 SR/GILERA 50 STALKER, RUNNER, DNA -CM105905- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/8/img/66228.jpg)
6 |
289575 - VIS More informationQuantity required : 2 |
||||||
|
6 |
825865 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/8/1/img/66781.jpg)
7 |
488139 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/1/img/66201.jpg)
7 |
CHOKE PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -288863- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/7/img/66657.JPG)
8 |
484260 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/6/img/73146.jpg)
8 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM128501- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/5/img/66625.jpg)
9 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -482916- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
9 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/4/img/66664.jpg)
10 |
CARB FLOAT CHAMBER "PIAGGIO GENUINE PART" 50 ZIP, NRG, LIBERTY, FLY, VESPA LX/GILERA 50 RUNNER, STALKER/APRILIA 50 RS, SR -484704- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/0/img/66200.JPG)
11 |
288862 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/2/3/img/66423.jpg)
12 |
SCREW - FOR CARB BOWL "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -432456- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/9/img/66209.jpg)
13 |
288881 - AXE FLOTTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/6/7/img/73067.jpg)
14 |
IDLE JET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM102103- More informationQuantity required : 1 |
||||||
|
15 |
CM101707 - GICL.MAXI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/8/1/img/73181.jpg)
16 |
CARB THROTTLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -CM141710- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/0/img/65670.jpg)
17 |
085285 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
18 |
152608 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/5/img/68725.jpg)
19 |
SCREW - FOR INJECTION BODY ADJUSTING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -828074- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
20 |
CM002904 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/0/2/img/73102.jpg)
21 |
SCREW - CARB AIR SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM107701- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/0/0/img/73100.jpg)
22 |
NEEDLE FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC 2STROKE -CM107510- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/4/img/66204.jpg)
23 |
NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC -288872- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/5/img/66205.jpg)
24 |
CONICAL PIN CLIP "PIAGGIO GENUINE PART" COMMON TO THE SCOOTER 50 CC RANGE -288873- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/2/img/66202.jpg)
25 |
288865 - VIS More informationQuantity required : 1 |
||||||
|
26 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/8/5/img/66485.jpg)
27 |
OIL VALVE (ON CARB) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -436206- More informationQuantity required : 1 |
||||||
|
28 |
CM112001 - TUBE VIDANGE CUVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/0/img/67250.jpg)
29 |
THROTTLE CABLE KIT ((FROM DISPATCHER TO CARB)) "PIAGGIO GENUINE PARTS" 50 ZIP SP, NRG MP3 1998>2005/GILERA 50 RUNNER 1998>2005 -582256- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/8/7/img/70587.JPG)
30 |
875551 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/3/img/66203.jpg)
31 |
SCREW - FOR CABLE ADJUSTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288868- More informationQuantity required : 1 |
