Vehicle Exploded View - GILERA RUNNER 50 Poggiali 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

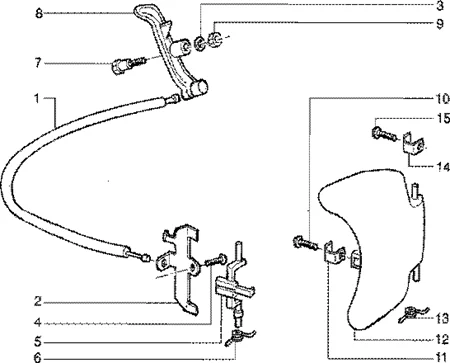

Châssis : T31 PORTILLON ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/657/Runner_50_Poggiali_1998-2005_T31.PNG)
1 |
CM012801 - TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/8/5/img/78085.jpg)
2 |
299903 - EQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
3 |
003054 - RONDELLE S00305400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
4 |
015996 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/7/2/img/78072.JPG)
5 |
299687 - CLIQUET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/8/8/img/80188.JPG)
6 |
573090 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
7 |
299972 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/8/4/img/78084.jpg)
8 |
299902 - CLIQUET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
9 |
020104 - ECROU S02010400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/1/1/img/72011.jpg)
11 |
FUEL TRAPDOOR BRACKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -AP8161182- More informationQuantity required : 1 |
||||||
|
12 |
574263000D - TRAPPE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/3/5/0/img/80350.JPG)
13 |
574267 - RESSORT DE TRAPPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/6/3/img/80263.jpg)
14 |
573716 - SUPPORT More informationQuantity required : 1 |
||||||
|
15 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 1 |
