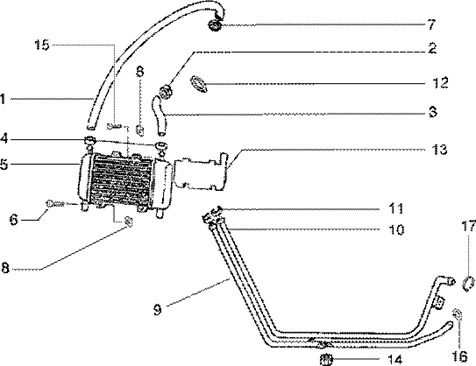

Vehicle Exploded View - GILERA RUNNER 50 Poggiali 1998-2005 GILERA

Châssis : T22 INSTALLATION DE REFROIDISSEMENT
Installation de refroidissement
Search
573059 - TUYAU

1
P2R reference P2R reference 80179
Maker reference Maker reference 573059

573059 - TUYAU

More information

Quantity required : 1
621564 - TUYAU

1
P2R reference P2R reference 84024
Maker reference Maker reference 621564

621564 - TUYAU

More information

Quantity required : 1
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904-

2
P2R reference P2R reference 72866
Maker reference Maker reference CM001904

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904-

More information

Quantity required : 1
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903-

4
P2R reference P2R reference 72865
Maker reference Maker reference CM001903

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903-

More information

Quantity required : 2
COOLING RADIATOR "PIAGGIO GENUINE PART" 50 ZIP SP/GILERA 50 RUNNER, DNA -299389-

5
P2R reference P2R reference 78064
Maker reference Maker reference 299389

COOLING RADIATOR "PIAGGIO GENUINE PART" 50 ZIP SP/GILERA 50 RUNNER, DNA -299389-

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249-

6
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249-

More information

Quantity required : 2
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903-

7
P2R reference P2R reference 72865
Maker reference Maker reference CM001903

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903-

More information

Quantity required : 1
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

8
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 3
57308R - TUYAU

9
P2R reference P2R reference 80187
Maker reference Maker reference 57308R

57308R - TUYAU

More information

Quantity required : 1
57307R - TUYAU CULASSE-RADIATEUR

10
P2R reference P2R reference 80183
Maker reference Maker reference 57307R

57307R - TUYAU CULASSE-RADIATEUR

More information

Quantity required : 1
CM001905 - COLLIER

11
P2R reference P2R reference 72867
Maker reference Maker reference CM001905

CM001905 - COLLIER

More information

Quantity required : 1
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

12
P2R reference P2R reference 65742
Maker reference Maker reference 145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

More information

Quantity required : 1
576177 - PROTECTION

13
P2R reference P2R reference 80775
Maker reference Maker reference 576177

576177 - PROTECTION

More information

Quantity required : 1
020106 - ECROU S02010600

14
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

020106 - ECROU S02010600

More information

Quantity required : 1
SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

15
P2R reference P2R reference 66043
Maker reference Maker reference 259830

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

More information

Quantity required : 1
178610 - PASSE CABLES

16
P2R reference P2R reference 65787
Maker reference Maker reference 178610

178610 - PASSE CABLES

More information

Quantity required : 1
CM001909 - COLLIER

17
P2R reference P2R reference 72870
Maker reference Maker reference CM001909

CM001909 - COLLIER

More information

Quantity required : 1
