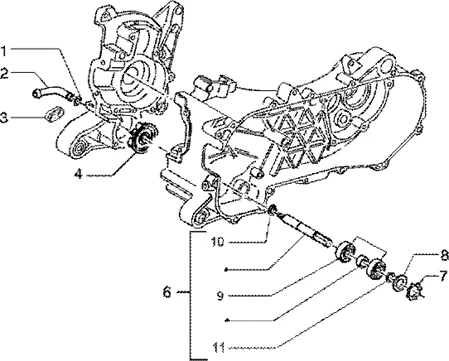

Vehicle Exploded View - GILERA RUNNER 50 Poggiali 1998-2005 GILERA

Moteur : T14 POMPE A EAU
Pompe a eau
Search
GASKET FOR WATER PUMP JUNCTION "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER/APRILIA 50 SR H2O L.C. -289254-

1
P2R reference P2R reference 66216
Maker reference Maker reference 289254

GASKET FOR WATER PUMP JUNCTION "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER/APRILIA 50 SR H2O L.C. -289254-

More information

Quantity required : 1
WATER PUMP OUTLET UNION "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER/APRILIA 50 SR H2O LIQUIDE -878910-

2
P2R reference P2R reference 70699
Maker reference Maker reference 878910

WATER PUMP OUTLET UNION "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER/APRILIA 50 SR H2O LIQUIDE -878910-

More information

Quantity required : 1
827685 - PASSE-CABLE

3
P2R reference P2R reference 68684
Maker reference Maker reference 827685

827685 - PASSE-CABLE

More information

Quantity required : 1
WATER PUMP IMPELLER "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 DNA, RUNNER -487730-

4
P2R reference P2R reference 66748
Maker reference Maker reference 487730

WATER PUMP IMPELLER "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 DNA, RUNNER -487730-

More information

Quantity required : 1
WATER PUMP SHAFT "PIAGGIO GENUINE PART" 50 NRG 1998> ZIP SP 2006>/GILERA 50 RUNNER 1997>, DNA 1998>/APRILIA 50 SR H2O 1998> -497406-

6
P2R reference P2R reference 66919
Maker reference Maker reference 497406

WATER PUMP SHAFT "PIAGGIO GENUINE PART" 50 NRG 1998> ZIP SP 2006>/GILERA 50 RUNNER 1997>, DNA 1998>/APRILIA 50 SR H2O 1998> -497406-

More information

Quantity required : 1
STOP RING FOR WATER PUMP AXIS "PIAGGIO GENUINE PART" 50 NRG, ZIP SP/GILERA 50 RUNNER, DNA/APRILIA 50 SR H2O -289553-

7
P2R reference P2R reference 66226
Maker reference Maker reference 289553

STOP RING FOR WATER PUMP AXIS "PIAGGIO GENUINE PART" 50 NRG, ZIP SP/GILERA 50 RUNNER, DNA/APRILIA 50 SR H2O -289553-

More information

Quantity required : 1
289554 - RONDELLE

8
P2R reference P2R reference 66227
Maker reference Maker reference 289554

289554 - RONDELLE

More information

Quantity required : 1
487392 - ROULEMENT

9
P2R reference P2R reference 66736
Maker reference Maker reference 487392

487392 - ROULEMENT

More information

Quantity required : 2
CLIP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER -006408-

10
P2R reference P2R reference 63808
Maker reference Maker reference 0064085

CLIP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER -006408-

More information

Quantity required : 1
CIRCLIP "PIAGGIO GENUINE PART" APE / CIRCLIP FOR WATER PUMP AXLE GILERA DNA 50 2006 -016719-

11
P2R reference P2R reference 65429
Maker reference Maker reference 0167195

CIRCLIP "PIAGGIO GENUINE PART" APE / CIRCLIP FOR WATER PUMP AXLE GILERA DNA 50 2006 -016719-

More information

Quantity required : 1
