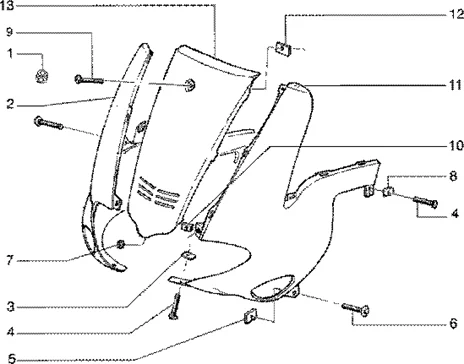

Vehicle Exploded View - GILERA RUNNER 50 Poggiali 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)
Châssis : T25 CARÉNAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/657/Runner_50_Poggiali_1998-2005_T25.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/2/7/img/80227.jpg)
1 |
EMBLEM - "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2005> -573508- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/7/8/img/78078.jpg)
1 |
LEFT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -299775- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
1 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 5 |
||||||
1 |
299107000C - PROTECTION INF EX-299107 More informationQuantity required : 1 |
||||||
|
2 |
RIGHT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -299776- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
2 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
|
2 |
42960050R7 - FLANC AV DROIT RUNNER ROUGE 894 More informationQuantity required : 1 |
||||||
|
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
3 |
015996 - VIS More informationQuantity required : 1 |
||||||
|
3 |
GRID -AIRFLOW-RIGHT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756590028- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
3 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 3 |
||||||
|
4 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
4 |
298134000D - REPOSE PIED DR GRISE More informationQuantity required : 1 |
||||||
|
4 |
42980050R7 - AILE AR DROITE RUNNER ROUGE 894 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 - More informationQuantity required : 5 |
||||||
|
4 |
299384000D - COUVERCLE CENTRAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/9/img/63849.jpg)
5 |
008265 - VIS More informationQuantity required : 2 |
||||||
|
5 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
6 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 4 |
||||||
|
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 4 |
||||||
|
6 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 2 |
||||||
|
7 |
576008 - LEVIER More informationQuantity required : 1 |
||||||
|
7 |
272861 - BOUCHON More informationQuantity required : 1 |
||||||
|
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 - More informationQuantity required : 1 |
||||||
|
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/6/0/img/63860.jpg)
8 |
008808 - EPINGLE S00880800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
8 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403- More informationQuantity required : 1 |
||||||
|
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 3 |
||||||
|
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 - More informationQuantity required : 8 |
||||||
|
9 |
81560050R7 - COUVERCLE ROUGE 894 RUNNER More informationQuantity required : 1 |
||||||
|
9 |
465054 - RESSORT More informationQuantity required : 1 |
||||||
|
10 |
299387 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
10 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
|
10 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 6 |
||||||
|
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
|
11 |
576719 - CLE EBAUCHE RUNNER 50/125/180/200 More informationQuantity required : 1 |
||||||
|
11 |
42950050R7 - FLANC AV GAUCHE RUNNER ROUGE 894 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/0/img/66340.jpg)
11 |
323990 - TENDEUR More informationQuantity required : 2 |
||||||
|
12 |
29889700NC - POIGNEE More informationQuantity required : 1 |
||||||
|
12 |
298133000D - REPOSE PIED G GRIS More informationQuantity required : 1 |
||||||
|
12 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/9/4/3/img/80943.JPG)
12 |
576718 - GROUPE SERRURE RUNNER 50/125/180/200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/6/4/0/img/80640.jpg)
13 |
GRID -AIRFLOW-LEFT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756580028- More informationQuantity required : 1 |
||||||
|
13 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 RAW TO BE PAINT -4294005- More informationQuantity required : 1 |
||||||
|
13 |
57487550R7 - AILE AR GAUCHE RUNNER ROUGE DRAGON 894 More informationQuantity required : 1 |
||||||
|
13 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 - More informationQuantity required : 2 |
||||||
|
14 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 - More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
14 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
