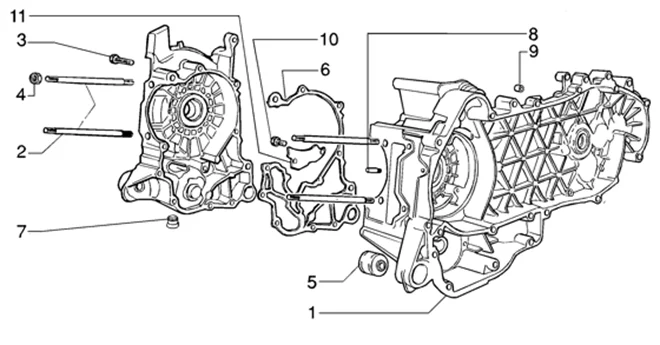

Vehicle Exploded View - GILERA RUNNER 200 VXR 4T 1998-2005 GILERA

Moteur : T2 CARTER
Carter
Search
COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-1 DIA 32,959/32,965 MM) -CM1485205001-

1
P2R reference P2R reference 73253
Maker reference Maker reference CM1485205001

COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-1 DIA 32,959/32,965 MM) -CM1485205001-

More information

Quantity required : 1
COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-2 DIA 32,959/32,959 MM) -CM1485205002-

1
P2R reference P2R reference 73254
Maker reference Maker reference CM1485205002

COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-2 DIA 32,959/32,959 MM) -CM1485205002-

More information

Quantity required : 1
CYLINDER STUD BOLT "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250 MOTEUR LEADER -1A003629R-

2
P2R reference P2R reference 70654
Maker reference Maker reference 1A003629R

CYLINDER STUD BOLT "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250 MOTEUR LEADER -1A003629R-

More information

Quantity required : 4
B016425 - VIS BRIDE

3
P2R reference P2R reference 72705
Maker reference Maker reference B016425

B016425 - VIS BRIDE

More information

Quantity required : 11
411296 - ECROU

4
P2R reference P2R reference 66358
Maker reference Maker reference 411296

411296 - ECROU

More information

Quantity required : 4
SILENBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER ET MAXISCOOTER -486081-

5
P2R reference P2R reference 66704
Maker reference Maker reference 486081

SILENBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER ET MAXISCOOTER -486081-

More information

Quantity required : 2
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, X8 STREET, VESPA LX, VESPA-S/APRILIA 125 SR, SPORT-CITY, MOJITO -829526-

6
P2R reference P2R reference 68851
Maker reference Maker reference 829526

GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, X8 STREET, VESPA LX, VESPA-S/APRILIA 125 SR, SPORT-CITY, MOJITO -829526-

More information

Quantity required : 1
B015433 - PLUG VISSES

7
P2R reference P2R reference 72673
Maker reference Maker reference B015433

B015433 - PLUG VISSES

More information

Quantity required : 2
484034 - GICLEUR

8
P2R reference P2R reference 66654
Maker reference Maker reference 484034

484034 - GICLEUR

More information

Quantity required : 1
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956-

9
P2R reference P2R reference 72696
Maker reference Maker reference B015956

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956-

More information

Quantity required : 2
018575 - VIS

10
P2R reference P2R reference 65443
Maker reference Maker reference 0185755
Replaced by référence Replaced by référence 109024

018575 - VIS

More information

Quantity required : 1
828766 - PLAQUETTE

11
P2R reference P2R reference 158678
Maker reference Maker reference 828766

828766 - PLAQUETTE

More information

Quantity required : 1
840489 - DEFLECTEUR

12
P2R reference P2R reference 69149
Maker reference Maker reference 840489

840489 - DEFLECTEUR

More information

Quantity required : 1
