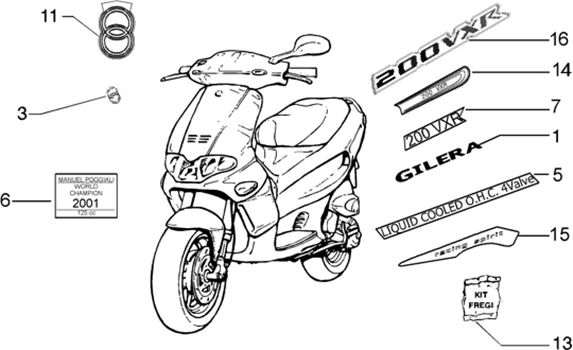

Châssis : T27 DÉCORATIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/658/Runner_200_VXR_4T_1998-2005_T27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/9/0/img/81390.jpg)
1 |
LABEL- "GILERA" "PIAGGIO GENUINE PART" GILERA 125-200 RUNNER -577986- More informationQuantity required : 2 |
||||||
2 |
577984 - MONOGRAMME 125 VX" RUNNER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/2/7/img/80227.jpg)
3 |
EMBLEM - "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2005> -573508- More informationQuantity required : 1 |
||||||
|
5 |
577988 - MONOGRAMMESX "LIQUID C. OHC 4 VALVES" More informationQuantity required : 1 |
||||||
|
5 |
577989 - MONOGRAMME DRT "LIQUID C. OHC 4 VALVES" More informationQuantity required : 1 |
||||||
|
6 |
620439 - SIGLE WORLD CHAMPION More informationQuantity required : 1 |
||||||
|
7 |
577985 - LOGO ADVENCED PVN More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/8/5/img/81385.jpg)
11 |
DECAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER -577980- More informationQuantity required : 2 |
||||||
|
11 |
576990 - MONOGRAMME GILERA LAT RUNNER C364 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/8/4/img/81384.jpg)
13 |
STICKERS KIT- "PIAGGIO GENUINE PART" 125 GILERA RUNNER 2002 -577973- More informationQuantity required : 1 |
||||||
|
13 |
62086300A6 - JEU ENJOLIV. More informationQuantity required : 1 |
||||||
|
13 |
621745 - KIT DECOR More informationQuantity required : 1 |
||||||
|
14 |
620858 - LOGO ADVENCED PVN More informationQuantity required : 1 |
||||||
|
14 |
620859 - LOGO ADVENCED PVN More informationQuantity required : 1 |
||||||
|
15 |
620853 - DECOR More informationQuantity required : 1 |
||||||
|
15 |
620854 - DECOR More informationQuantity required : 1 |
||||||
|
16 |
621749 - AUTOCOLLANT More informationQuantity required : 2 |
