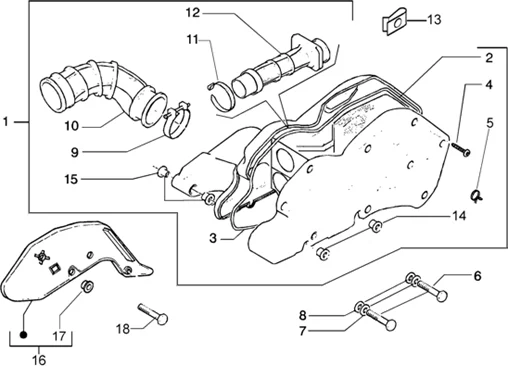

Vehicle Exploded View - GILERA RUNNER 200 VXR 4T 1998-2005 GILERA

Châssis : T20 FILTRE A AIR
Filtre a air
Search
871803 - BOITE FILTRE AIR

1
P2R reference P2R reference 70404
Maker reference Maker reference 871803

871803 - BOITE FILTRE AIR

More information

Quantity required : 1
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM 125-250-400-500 BEVERLY, X9-EVO, MP3, X10, X7, X-EVO/APRILIA ATLANTIC, SR-MAX, SPORT-CITY/GILERA NEXUS, FUOCO -8292580P-

2
P2R reference P2R reference 156970
Maker reference Maker reference 8292580P

AIR FILTER"PIAGGIO GENUINE PART" PREMIUM 125-250-400-500 BEVERLY, X9-EVO, MP3, X10, X7, X-EVO/APRILIA ATLANTIC, SR-MAX, SPORT-CITY/GILERA NEXUS, FUOCO -8292580P-

More information

Quantity required : 1
GASKET FOR AIR FILTER COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829259-

3
P2R reference P2R reference 68833
Maker reference Maker reference 829259

GASKET FOR AIR FILTER COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829259-

More information

Quantity required : 1
SCREW - 3x20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146-

4
P2R reference P2R reference 66025
Maker reference Maker reference 258146

SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146-

More information

Quantity required : 9
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910-

5
P2R reference P2R reference 72895
Maker reference Maker reference CM002910

COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910-

More information

Quantity required : 1
SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640-

6
P2R reference P2R reference 65448
Maker reference Maker reference 0186405

SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640-

More information

Quantity required : 2
012533 - RONDELLE

7
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

012533 - RONDELLE

More information

Quantity required : 3
003056 - RONDELLE

8
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

003056 - RONDELLE

More information

Quantity required : 3
260918 - BRIDE

9
P2R reference P2R reference 66046
Maker reference Maker reference 260918

260918 - BRIDE

More information

Quantity required : 1
827939 - MANCHON

10
P2R reference P2R reference 68720
Maker reference Maker reference 827939

827939 - MANCHON

More information

Quantity required : 1
CM001926 - COLLIER

11
P2R reference P2R reference 72885
Maker reference Maker reference CM001926

CM001926 - COLLIER

More information

Quantity required : 1
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829543-

12
P2R reference P2R reference 68856
Maker reference Maker reference 829543

AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829543-

More information

Quantity required : 2
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

13
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 2
830056 - BAGUE

14
P2R reference P2R reference 68888
Maker reference Maker reference 830056

830056 - BAGUE

More information

Quantity required : 4
830057 - BAGUE

15
P2R reference P2R reference 68889
Maker reference Maker reference 830057

830057 - BAGUE

More information

Quantity required : 2
652802 - PARATIA COMPLE

16
P2R reference P2R reference 68198
Maker reference Maker reference 652802

652802 - PARATIA COMPLE

More information

Quantity required : 1
830056 - BAGUE

17
P2R reference P2R reference 68888
Maker reference Maker reference 830056

830056 - BAGUE

More information

Quantity required : 3
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838-

18
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838-

More information

Quantity required : 2
