Vehicle Exploded View - GILERA RUNNER 200 VXR 4T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

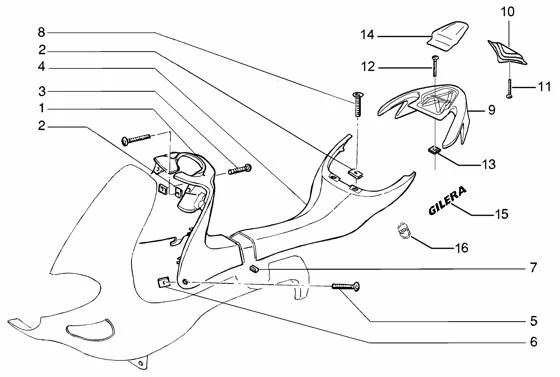

Châssis : T31 CARÉNAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/658/Runner_200_VXR_4T_1998-2005_T31.PNG)
1 |
298132000P - PROTECTION SUP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
2 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 1 |
||||||
|
4 |
299384000P - PROTECTION AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
5 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/7/3/img/78073.jpg)
7 |
299693 - RESSORT More informationQuantity required : 5 |
||||||
|
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 3 |
||||||
|
9 |
LUGGAGE RACK "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER OLD MODEL -6208840095- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/5/9/img/81359.jpg)
10 |
LUGGAGE RACK GRID "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -577833- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
11 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/9/0/img/96290.jpg)
12 |
CM179306 - VIS More informationQuantity required : 4 |
||||||
|
12 |
CM179306 - VIS More informationQuantity required : 4 |
||||||
|
13 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/5/8/img/81358.JPG)
14 |
LUGGAGE RACK COVER "PIAGGIO GENUINE PART" PIAGGIO 50-125 RUNNER 1998>2005 -577832- More informationQuantity required : 1 |
||||||
|
15 |
5739140029 - MONOGRAMME GILERA BLANC More informationQuantity required : 1 |
||||||
|
15 |
5739140034 - AUTOCOLLANT GILERA ROUGE C30 More informationQuantity required : 1 |
