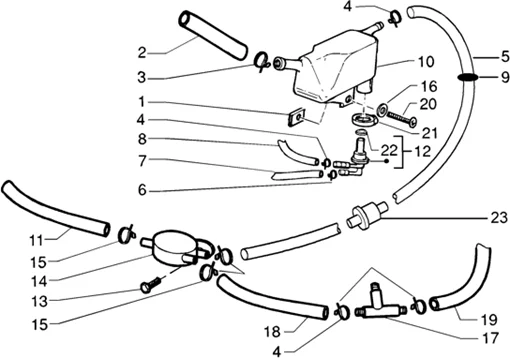

Vehicle Exploded View - GILERA RUNNER 200 VXR 4T 1998-2005 GILERA

Châssis : T36 CIRCUIT D'ALIMENTATION
Circuit d'alimentation
Search
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

1
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1
CM002205 - TUBE DEPRESSIONE

2
P2R reference P2R reference 113415
Maker reference Maker reference CM002205

CM002205 - TUBE DEPRESSIONE

More information

Quantity required : 1
CM002912 - COLLIER

3
P2R reference P2R reference 72896
Maker reference Maker reference CM002912

CM002912 - COLLIER

More information

Quantity required : 1
CM002904 - COLLIER

4
P2R reference P2R reference 72891
Maker reference Maker reference CM002904

CM002904 - COLLIER

More information

Quantity required : 4
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160-

5
P2R reference P2R reference 65919
Maker reference Maker reference 1R000160

FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160-

More information

Quantity required : 1
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901-

6
P2R reference P2R reference 72888
Maker reference Maker reference CM002901

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901-

More information

Quantity required : 2
FUEL HOSE "PIAGGIO GENUINE PART" 125 LIBERTY, VESPA LX, VESPA-S -CM006105-

8
P2R reference P2R reference 72900
Maker reference Maker reference CM006105

FUEL HOSE "PIAGGIO GENUINE PART" 125 LIBERTY, VESPA LX, VESPA-S -CM006105-

More information

Quantity required : 1
SILENBLOC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCCOOTER -258904-

9
P2R reference P2R reference 66031
Maker reference Maker reference 258904

SILENBLOC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCCOOTER -258904-

More information

Quantity required : 1
577871 - DEGAZEUR

10
P2R reference P2R reference 81371
Maker reference Maker reference 577871

577871 - DEGAZEUR

More information

Quantity required : 1
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160-

11
P2R reference P2R reference 65919
Maker reference Maker reference 1R000160

FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160-

More information

Quantity required : 1
FUEL TAP "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -577881-

12
P2R reference P2R reference 81374
Maker reference Maker reference 577881

FUEL TAP "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -577881-

More information

Quantity required : 1
SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

13
P2R reference P2R reference 66043
Maker reference Maker reference 259830

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

More information

Quantity required : 1
FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 stroke 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903-

14
P2R reference P2R reference 73126
Maker reference Maker reference CM120903

FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903-

More information

Quantity required : 1
CM002907 - COLLIER

15
P2R reference P2R reference 72893
Maker reference Maker reference CM002907

CM002907 - COLLIER

More information

Quantity required : 1
709077 - RONDELLE

16
P2R reference P2R reference 68492
Maker reference Maker reference 709077

709077 - RONDELLE

More information

Quantity required : 1
"TEE" UNION "PIAGGIO GENUINE PART" APRILIA RSV4 1000 2009>2016, TUONO V4 1000 R 2011>2015/ PIAGGIO TYPHOON 125 4 stroke 2011>2017, X9 125 1998>2005 -828325-

17
P2R reference P2R reference 68748
Maker reference Maker reference 828325

"TEE" UNION "PIAGGIO GENUINE PART" APRILIA RSV4 1000 2009>2016, TUONO V4 1000 R 2011>2015/ PIAGGIO TYPHOON 125 4 STROKE 2011>2017, X9 125 1998>2005 -828325-

More information

Quantity required : 1
FUEL HOSE (5X10) L1060 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM001432-

18
P2R reference P2R reference 72862
Maker reference Maker reference CM001432

FUEL HOSE (5X10) L1060 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM001432-

More information

Quantity required : 2
SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

20
P2R reference P2R reference 66043
Maker reference Maker reference 259830

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

More information

Quantity required : 1
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888-

21
P2R reference P2R reference 70716
Maker reference Maker reference 879888

FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888-

More information

Quantity required : 1
FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868-

22
P2R reference P2R reference 65825
Maker reference Maker reference 196868

FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868-

More information

Quantity required : 1
FUEL FILTER "PIAGGIO GENUINE PART" 125 MP3 2007>, X7 2008>, X8 2004>, X9 2003>, X-EVO 2007>, VESPA GTS 2007> 50 FLY 4 stroke 2005>/GILERA 125 NEXUS 2007>, RUNNER 2004> 50 RUNNER PURE-JET 2005> -270423-

23
P2R reference P2R reference 77289
Maker reference Maker reference 270423

FUEL FILTER "PIAGGIO GENUINE PART" 125 MP3 2007>, X7 2008>, X8 2004>, X9 2003>, X-EVO 2007>, VESPA GTS 2007> 50 FLY 4 STROKE 2005>/GILERA 125 NEXUS 2007>, RUNNER 2004> 50 RUNNER PURE-JET 2005> -270423-

More information

Quantity required : 1
217280 - COLLIER

24
P2R reference P2R reference 65935
Maker reference Maker reference 217280

217280 - COLLIER

More information

Quantity required : 1
