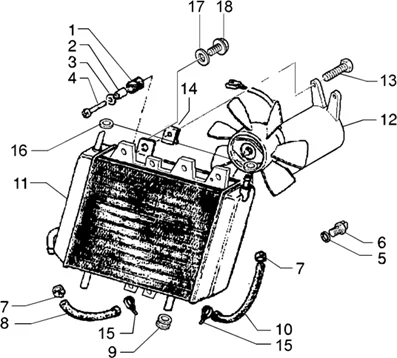

Vehicle Exploded View - GILERA RUNNER 200 VXR 4T 1998-2005 GILERA

Châssis : T24 RADIATEUR
Radiateur
Search
351782 - ENTRETOISE

1
P2R reference P2R reference 66345
Maker reference Maker reference 351782

351782 - ENTRETOISE

More information

Quantity required : 1
SPACER- "PIAGGIO GENUINE PART" COMMON TO THE RANGE -273288-

2
P2R reference P2R reference 66123
Maker reference Maker reference 273288

SPACER- "PIAGGIO GENUINE PART" COMMON TO THE RANGE -273288-

More information

Quantity required : 1
013092 - RONDELLE S01309200

3
P2R reference P2R reference 65356
Maker reference Maker reference 0130925

013092 - RONDELLE S01309200

More information

Quantity required : 2
SCREW - (6x30) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -271891-

4
P2R reference P2R reference 66107
Maker reference Maker reference 271891

SCREW - (6X30) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -271891-

More information

Quantity required : 2
COPPER GASKET FOR HEAT SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -168077-

5
P2R reference P2R reference 65768
Maker reference Maker reference 168077

COPPER GASKET FOR HEAT SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -168077-

More information

Quantity required : 1
SWITCH /TEMPERATURE SENSOR "PIAGGIO GENUINE PART" 125 HEXAGON/APRILIA 125 RUNNER -293301-

6
P2R reference P2R reference 77687
Maker reference Maker reference 293301

SWITCH /TEMPERATURE SENSOR "PIAGGIO GENUINE PART" 125 HEXAGON/APRILIA 125 RUNNER -293301-

More information

Quantity required : 1
584676 - INTERRUPTEUR TEMP

6
P2R reference P2R reference 82104
Maker reference Maker reference 584676

584676 - INTERRUPTEUR TEMP

More information

Quantity required : 1
COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907-

7
P2R reference P2R reference 72868
Maker reference Maker reference CM001907

COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907-

More information

Quantity required : 3
SILENBLOC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCCOOTER -258904-

9
P2R reference P2R reference 66031
Maker reference Maker reference 258904

SILENBLOC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCCOOTER -258904-

More information

Quantity required : 2
576107 - DURITE EAU RETOUR

10
P2R reference P2R reference 80754
Maker reference Maker reference 576107

576107 - DURITE EAU RETOUR

More information

Quantity required : 1
57301R - RADIATEUR

11
P2R reference P2R reference 80178
Maker reference Maker reference 57301R

57301R - RADIATEUR

More information

Quantity required : 1
580922 - ELECTRO VENTILATEUR

12
P2R reference P2R reference 81469
Maker reference Maker reference 580922

580922 - ELECTRO VENTILATEUR

More information

Quantity required : 1
015558 - VIS

13
P2R reference P2R reference 65380
Maker reference Maker reference 0155585

015558 - VIS

More information

Quantity required : 3
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

14
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 8
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001908-

15
P2R reference P2R reference 72869
Maker reference Maker reference CM001908

COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001908-

More information

Quantity required : 3
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903-

16
P2R reference P2R reference 72865
Maker reference Maker reference CM001903

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903-

More information

Quantity required : 2
GASKET "PIAGGIO GENUINE PART" APE, PORTEUR/APRILIA SRV/GILERA GP 800 -016661-

17
P2R reference P2R reference 65424
Maker reference Maker reference 0166615

GASKET "PIAGGIO GENUINE PART" APE, PORTEUR/APRILIA SRV/GILERA GP 800 -016661-

More information

Quantity required : 1
827887 - BOUCHON

18
P2R reference P2R reference 92772
Maker reference Maker reference 827887

827887 - BOUCHON

More information

Quantity required : 1
