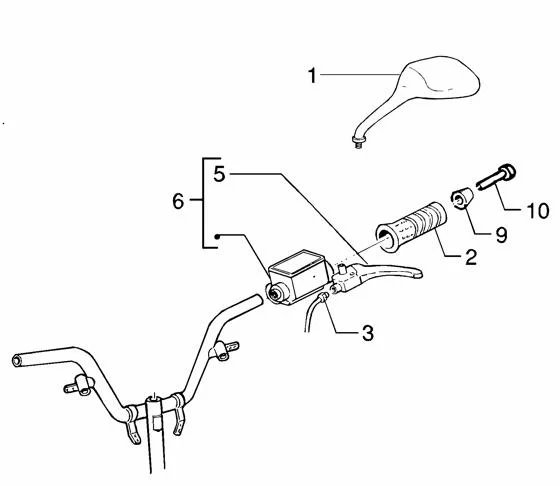

Vehicle Exploded View - GILERA RUNNER 200 VXR 4T 1998-2005 GILERA

Guidon : T39 PIECES COMPOSANT LE GUIDON
Pieces composant le guidon
Search
CM068001 - RETRO G

1
P2R reference P2R reference 95568
Maker reference Maker reference CM068001

CM068001 - RETRO G

More information

Quantity required : 1
LEFT HANDLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271452-

2
P2R reference P2R reference 66099
Maker reference Maker reference 271452

LEFT HANDLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271452-

More information

Quantity required : 1
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953-

3
P2R reference P2R reference 67189
Maker reference Maker reference 580953

STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953-

More information

Quantity required : 1
SCREW - FOR BAR ENDS -1B006376-

4
P2R reference P2R reference 158365
Maker reference Maker reference 1B006376

SCREW - FOR BAR ENDS -1B006376-

More information

Quantity required : 1
SCREW - FOR BAR ENDS -1B006376-

4
P2R reference P2R reference 158365
Maker reference Maker reference 271434

SCREW - FOR BAR ENDS -1B006376-

More information

Quantity required : 1
RIGHT BRAKE LEVER - "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER, LIBERTY/GILERA 125 RUNNER -497042-

5
P2R reference P2R reference 66911
Maker reference Maker reference 497042

RIGHT BRAKE LEVER - "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER, LIBERTY/GILERA 125 RUNNER -497042-

More information

Quantity required : 1
RIGHT BRAKE LEVER - "PIAGGIO GENUINE PART" 50 ZIP 2000>, NRG 2000>, LIBERTY 1998>/GILERA 50 RUNNER 1997>, STALKER 1997> -564678-

5
P2R reference P2R reference 80108
Maker reference Maker reference 564678

RIGHT BRAKE LEVER - "PIAGGIO GENUINE PART" 50 ZIP 2000>, NRG 2000>, LIBERTY 1998>/GILERA 50 RUNNER 1997>, STALKER 1997> -564678-

More information

Quantity required : 1
CM074803 - POMPE FREIN

6
P2R reference P2R reference 95656
Maker reference Maker reference CM074803

CM074803 - POMPE FREIN

More information

Quantity required : 1
BAR ENDS - CHROME "PIAGGIO GENUINE PART" 125-250 X9, X8, X7, X-EVO, BEVERLY/GILERA 50-125 RUNNER -271433-

7
P2R reference P2R reference 77327
Maker reference Maker reference 271433

BAR ENDS - CHROME "PIAGGIO GENUINE PART" 125-250 X9, X8, X7, X-EVO, BEVERLY/GILERA 50-125 RUNNER -271433-

More information

Quantity required : 1
583697 - CONTRE POIDS X9/BEV125/200/500+GT

7
P2R reference P2R reference 103192
Maker reference Maker reference 583697

583697 - CONTRE POIDS X9/BEV125/200/500+GT

More information

Quantity required : 2
498373 - COUVERCLE BRAKE

10
P2R reference P2R reference 79617
Maker reference Maker reference 498373

498373 - COUVERCLE BRAKE

More information

Quantity required : 1
