Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

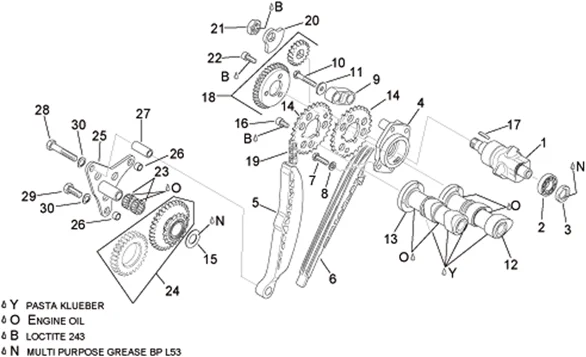

Moteur : 29.56 DISTRIBUTION CYLINDRE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/318/RSV_1000_Tuono_2006-2009_29.56.PNG)
1 |
AP0220442 - CONTRALBERO SUP. More informationQuantity required : 1 |
||||||
|
2 |
2R000324 - ROULEMENT A BILLES More informationQuantity required : 1 |
||||||
|
3 |
AP0250130 - JOINT SPI More informationQuantity required : 1 |
||||||
|
4 |
AP0211686 - PLAQUE More informationQuantity required : 1 |
||||||
|
5 |
AP0236300 - GUIDE-CHA?NE More informationQuantity required : 1 |
||||||
|
6 |
AP0236310 - GUIDE-CHA?NE More informationQuantity required : 1 |
||||||
|
8 |
AP0244211 - RONDELLE More informationQuantity required : 2 |
||||||
|
9 |
AP0236380 - GUIDE-CHA?NE More informationQuantity required : 1 |
||||||
|
10 |
AP0941121 - VIS More informationQuantity required : 2 |
||||||
|
11 |
AP0827305 - RONDELLE More informationQuantity required : 2 |
||||||
|
13 |
AP0620203 - ARBRE A CAMES More informationQuantity required : 1 |
||||||
|
14 |
AP0634732 - ENGRENAGE DISTRIBUTION More informationQuantity required : 2 |
||||||
|
15 |
AP0627190 - RONDELLE More informationQuantity required : 1 |
||||||
|
16 |
AP0840371 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/8/9/img/43789.jpg)
17 |
AP0246055 - CLAVETTE More informationQuantity required : 1 |
||||||
|
18 |
AP0295775 - PIGNON CONTRE-ARBRE SUP.CPL. More informationQuantity required : 1 |
||||||
|
19 |
AP0297957 - CATENA DISTRIBUZIONE More informationQuantity required : 1 |
||||||
|
20 |
AP0219340 - CONTREPOIDS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/4/8/9/img/149489.jpg)
21 |
2R000219 - ECROU More informationQuantity required : 1 |
||||||
|
22 |
AP0840391 - VIS More informationQuantity required : 3 |
||||||
|
23 |
AP0632161 - CAGE A ROULEAUX More informationQuantity required : 2 |
||||||
|
24 |
AP0295760 - ENGRENAGE DISTRIB.CPL.; More informationQuantity required : 1 |
||||||
|
25 |
AP0211756 - PL.POUR CAGE A ROUL. More informationQuantity required : 1 |
||||||
|
26 |
AP0929500 - GOUPILLE More informationQuantity required : 2 |
||||||
|
27 |
AP0247980 - DOUILLE More informationQuantity required : 1 |
||||||
|
28 |
AP0940631 - VIS More informationQuantity required : 1 |
||||||
|
29 |
AP0240275 - VIS More informationQuantity required : 2 |
