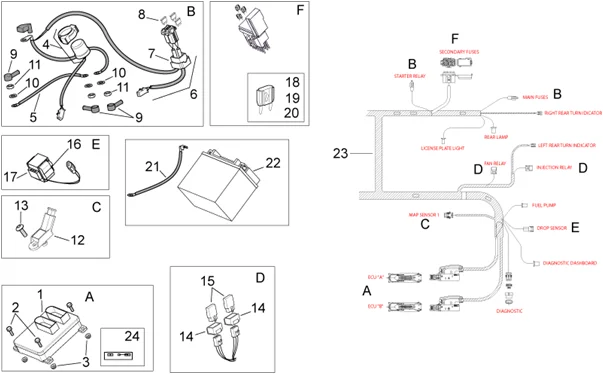

Chassis : 28.44 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/318/RSV_1000_Tuono_2006-2009_28.44.PNG)
1 |
AP0266532 - CENTRALINA ACCENSIONE CDI More informationQuantity required : 1 |
||||||
|
1 |
AP0266533 - STAND CONTROL DEVICE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
2 |
AP8152280 - VIS BRIDE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
3 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/0/img/71280.jpg)
4 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, DORSODURO, 1000 RSV-2, CAPONORD, 650 PEGASSO, 125-250-500 ATLANTIC, SCARABEO -AP81129275- More informationQuantity required : 1 |
||||||
|
5 |
AP8127145 - CAVO MOTORINO AVV.TO-RELE' More informationQuantity required : 1 |
||||||
|
6 |
AP8127148 - CABLAGGIO RICARICA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/7/img/71277.JPG)
7 |
AP8112811 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
|
9 |
AP8120218 - CAPUCHON BORNE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
10 |
658830 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
11 |
AP8150026 - ECROU More informationQuantity required : 2 |
||||||
|
12 |
AP0274055 - SENSORE PRESSIONE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
13 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
14 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.JPG)
15 |
AP8220283 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/1/img/67301.JPG)
16 |
584509 - SENSOR DE CHUTE More informationQuantity required : 1 |
||||||
|
17 |
AP8144046 - CAOUTCHOUC DETECT. INCL. More informationQuantity required : 1 |
||||||
|
18 |
AP8176099 - FUSIBILE 5A More informationQuantity required : 3 |
||||||
|
19 |
AP8176100 - FUSIBILE 20A More informationQuantity required : 1 |
||||||
|
20 |
977772 - FUSIBLE 15A More informationQuantity required : 2 |
||||||
|
21 |
AP8127149 - CABLAGGIO MASSA-BATTERIA MOTOR More informationQuantity required : 1 |
||||||
|
22 |
583158 - BATTERIE 12V/12A YUASA YTX12-BS More informationQuantity required : 1 |
||||||
|
23 |
AP8127704 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
