Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

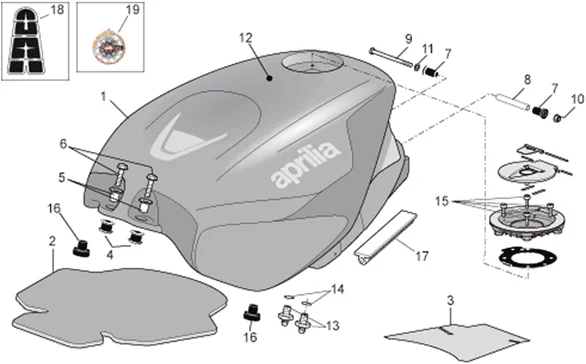

Chassis : 28.15 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/318/RSV_1000_Tuono_2006-2009_28.15.PNG)
1 |
AP8184399 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
AP8184634 - RESERVOIR ESSENCE BLEU/BLANC More informationQuantity required : 1 |
||||||
|
1 |
AP8184628 - RESERVOIR NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8184627 - RESERVOIR NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8179149 - SERBATOIO BENZINA More informationQuantity required : 1 |
||||||
|
1 |
AP8179312 - SERBATOIO BENZ.V.SUNS.RE/NE.AP More informationQuantity required : 1 |
||||||
|
1 |
AP8179342 - SERBATOIO BENZINA More informationQuantity required : 1 |
||||||
|
1 |
AP8179345 - SERBATOIO BENZ.V.SUNS.RED USA More informationQuantity required : 1 |
||||||
|
1 |
AP8179410 - SERBATOIO BENZ.V.NERO.DI./GR.D More informationQuantity required : 1 |
||||||
|
1 |
AP8179411 - SERBATOIO BEN.V.NERO.DI./G-USA More informationQuantity required : 1 |
||||||
|
1 |
AP8184296 - RESERVIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
AP8184116 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
AP8184125 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
AP8184280 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
AP8184281 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
AP8184635 - RESERVOIR ESSENCE PEINT BLEU/BLANC More informationQuantity required : 1 |
||||||
|
1 |
AP8184640 - RESERVOIR ESSENCE PEINT GRIS/BLANC More informationQuantity required : 1 |
||||||
|
1 |
AP8184657 - RESERVOIR ESSENCE, ORANGE More informationQuantity required : 1 |
||||||
|
1 |
AP8184398 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
AP8184295 - RESERVIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
AP8184796 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
AP8184795 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
AP8184668 - RESERVOIR ESSENCE, SILVER More informationQuantity required : 1 |
||||||
|
1 |
AP8184667 - RESERVOIR ESSENCE, SILVER More informationQuantity required : 1 |
||||||
|
1 |
AP8184658 - RESERVOIR ESSENCE, ORANGE More informationQuantity required : 1 |
||||||
|
1 |
AP8184641 - RESERVOIR ESSENCE PEINT GRIS/BLANC More informationQuantity required : 1 |
||||||
|
2 |
AP8117174 - PANN.INSONORIS.RES.; More informationQuantity required : 1 |
||||||
|
3 |
AP8117147 - PANN.THERMOFUGE RES.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
4 |
AP8144328 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
5 |
AP8121421 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
6 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 2 |
||||||
|
7 |
AP8123934 - CAOUTCHOUC; More informationQuantity required : 2 |
||||||
|
8 |
AP8134419 - DOUILLE ATTACHE RESERVOIR; More informationQuantity required : 1 |
||||||
|
9 |
AP8150459 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.JPG)
11 |
AP8150014 - RONDELLE More informationQuantity required : 1 |
||||||
|
12 |
AP8267147 - DECALCO USO BENZINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/0/2/img/37802.jpg)
13 |
2B001203 - CAOUTCHOUC AVEC INSERT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
14 |
O'RING GASKET FOR FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120965- More informationQuantity required : 1 |
||||||
|
15 |
AP8150454 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/7/img/49637.jpg)
16 |
RUBBER SPACER "PIAGGIO GENUINE PART" APRILIA DORSODURO, RSV-2, RSV-4, TUONO -AP8144158- More informationQuantity required : 2 |
||||||
|
17 |
AP8117275 - GUARNIZIONE ANTICALORE More informationQuantity required : 2 |
||||||
|
18 |
AP8166730 - DEC.PROTEZIONE SERBATOIO More informationQuantity required : 1 |
||||||
|
18 |
853017 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
18 |
852816 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
18 |
852798 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
18 |
AP8166844 - DECALCO PROTEZIONE SERBATOIO More informationQuantity required : 1 |
||||||
|
18 |
860217 - DECALCO More informationQuantity required : 1 |
||||||
|
18 |
860084 - DECALCO More informationQuantity required : 1 |
||||||
|
18 |
852572 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
18 |
AP8166761 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
19 |
896834 - DECALCO More informationQuantity required : 1 |
||||||
|
19 |
853018 - DECALCO More informationQuantity required : 1 |
