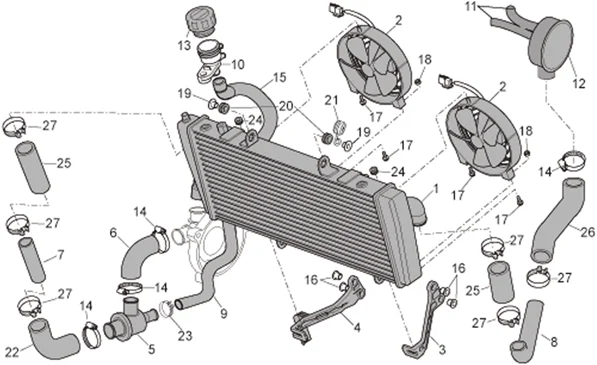

Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2006-2009 APRILIA

Chassis : 28.25 INSTALLATION REFROIDISSEMENT
Installation refroidissement
Search
AP8104828 - RADIATORE ACQUA

1
P2R reference P2R reference 45469
Maker reference Maker reference AP8104828

AP8104828 - RADIATORE ACQUA

More information

Quantity required : 1
AP8124855 - VENTILATEUR CPL.

2
P2R reference P2R reference 47633
Maker reference Maker reference AP8124855

AP8124855 - VENTILATEUR CPL.

More information

Quantity required : 2
AP8134852 - SUPPORTO INF.SX RADIAT.ACQUA

3
P2R reference P2R reference 49054
Maker reference Maker reference AP8134852

AP8134852 - SUPPORTO INF.SX RADIAT.ACQUA

More information

Quantity required : 1
AP8134853 - SUPPORTO INF.DX RADIAT.ACQUA

4
P2R reference P2R reference 49055
Maker reference Maker reference AP8134853

AP8134853 - SUPPORTO INF.DX RADIAT.ACQUA

More information

Quantity required : 1
AP8124929 - GROUPE THERMOSTAT

5
P2R reference P2R reference 47667
Maker reference Maker reference AP8124929

AP8124929 - GROUPE THERMOSTAT

More information

Quantity required : 1
AP8144033 - TUY.THERMOS.-POMPE

6
P2R reference P2R reference 49583
Maker reference Maker reference AP8144033

AP8144033 - TUY.THERMOS.-POMPE

More information

Quantity required : 1
AP8144719 - TUBO RADIATORE-TERMOSTATO

7
P2R reference P2R reference 49844
Maker reference Maker reference AP8144719

AP8144719 - TUBO RADIATORE-TERMOSTATO

More information

Quantity required : 1
AP8144718 - TUBO COLLETT.3 VIE-RADIATORE

8
P2R reference P2R reference 49843
Maker reference Maker reference AP8144718

AP8144718 - TUBO COLLETT.3 VIE-RADIATORE

More information

Quantity required : 1
AP8120980 - TUY.THERMOSTAT-MOT.

9
P2R reference P2R reference 46709
Maker reference Maker reference AP8120980

AP8120980 - TUY.THERMOSTAT-MOT.

More information

Quantity required : 1
AP8144644 - BOCCHETTONE CARICO ACQUA

10
P2R reference P2R reference 49802
Maker reference Maker reference AP8144644

AP8144644 - BOCCHETTONE CARICO ACQUA

More information

Quantity required : 1
AP8144449 - TUBO MOTORE-COLLETTORE 3 VIE

11
P2R reference P2R reference 49734
Maker reference Maker reference AP8144449

AP8144449 - TUBO MOTORE-COLLETTORE 3 VIE

More information

Quantity required : 2
AP8104338 - COLLETTORE A TRE VIE

12
P2R reference P2R reference 45353
Maker reference Maker reference AP8104338

AP8104338 - COLLETTORE A TRE VIE

More information

Quantity required : 1
AP8102615 - BOUCHON

13
P2R reference P2R reference 45192
Maker reference Maker reference AP8102615

AP8102615 - BOUCHON

More information

Quantity required : 1
AP8104097 - COLLIER SERR. TUBE;

14
P2R reference P2R reference 71217
Maker reference Maker reference AP8104097

AP8104097 - COLLIER SERR. TUBE;

More information

Quantity required : 4
AP8144645 - TUBO BOCCHETTONE-POMPA

15
P2R reference P2R reference 49803
Maker reference Maker reference AP8144645

AP8144645 - TUBO BOCCHETTONE-POMPA

More information

Quantity required : 1
AP8121795 - DOUILLE EN T

16
P2R reference P2R reference 71485
Maker reference Maker reference AP8121795

AP8121795 - DOUILLE EN T

More information

Quantity required : 4
AP8152277 - VIS BRIDE

17
P2R reference P2R reference 71941
Maker reference Maker reference AP8152277

AP8152277 - VIS BRIDE

More information

Quantity required : 4
AP8150026 - ECROU

18
P2R reference P2R reference 71812
Maker reference Maker reference AP8150026

AP8150026 - ECROU

More information

Quantity required : 4
AP8221023 - "DOUILLE EN ""T"" *"

19
P2R reference P2R reference 72294
Maker reference Maker reference AP8221023

AP8221023 - "DOUILLE EN ""T"" *"

More information

Quantity required : 2
AP8120030 - CAOUTCHOUC

20
P2R reference P2R reference 71384
Maker reference Maker reference AP8120030

AP8120030 - CAOUTCHOUC

More information

Quantity required : 2
AP8201727 - GUIDE-CABLE NOIR

21
P2R reference P2R reference 72140
Maker reference Maker reference AP8201727

AP8201727 - GUIDE-CABLE NOIR

More information

Quantity required : 1
COOLANT HOSE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2 -AP8144733-

22
P2R reference P2R reference 49850
Maker reference Maker reference AP8144733

COOLANT HOSE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2 -AP8144733-

More information

Quantity required : 1
AP8101927 - COLLIER CLIC

23
P2R reference P2R reference 45123
Maker reference Maker reference AP8101927

AP8101927 - COLLIER CLIC

More information

Quantity required : 2
AP8112600 - CAOUTCHOUC

24
P2R reference P2R reference 71276
Maker reference Maker reference AP8112600

AP8112600 - CAOUTCHOUC

More information

Quantity required : 2
AP8144720 - MANICOTTO

25
P2R reference P2R reference 49845
Maker reference Maker reference AP8144720

AP8144720 - MANICOTTO

More information

Quantity required : 2
AP8144732 - TUBO COLLETTORE 3 VIE-TUBO ALL

26
P2R reference P2R reference 49849
Maker reference Maker reference AP8144732

AP8144732 - TUBO COLLETTORE 3 VIE-TUBO ALL

More information

Quantity required : 1
COOLANT HOSE CLAMP 31X9 "PIAGGIO GENUINE PART" APRILIA1000 RSV-2, TUONO V2, MANA -AP8104540-

27
P2R reference P2R reference 45403
Maker reference Maker reference AP8104540

COOLANT HOSE CLAMP 31X9 "PIAGGIO GENUINE PART" APRILIA1000 RSV-2, TUONO V2, MANA -AP8104540-

More information

Quantity required : 6
