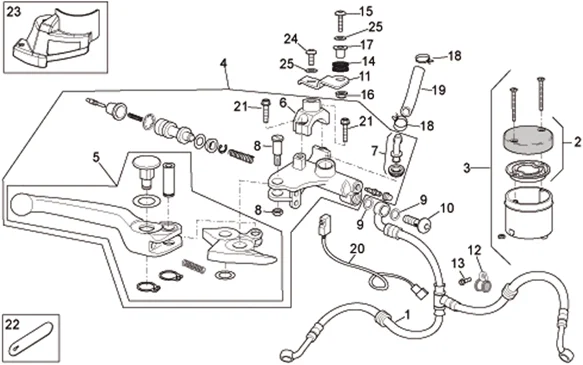

Chassis : 28.24 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/318/RSV_1000_Tuono_2006-2009_28.24.PNG)
1 |
852216 - CONDUITE FREIN More informationQuantity required : 1 |
||||||
|
2 |
AP8113598 - BOUCHON RES.HUILE FREINS More informationQuantity required : 1 |
||||||
|
3 |
TANK FOR FRONT BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO, FALCO, FUTURA, 750-1200 DORSODURO, 1200 CAPONORD -AP8113499- More informationQuantity required : 1 |
||||||
|
4 |
AP8133882 - POMPA FRENO ANTERIORE PSC15 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/9/6/img/139096.jpg)
5 |
FRONT BRAKE LEVER- "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD 2014 -2B003818- More informationQuantity required : 1 |
||||||
|
6 |
AP8168501 - BASE RETROVISEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.JPG)
7 |
AP8213057 - RACCORD POMPE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/7/6/img/140976.jpg)
8 |
SCREW - FOR RIGHT/LEFT LEVER FASTENING "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, RSV-2, TUONO V2, FUTURA -2B003040- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
9 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/5/2/img/71652.jpg)
10 |
BRAKE HOSE BANJO "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE MOTO-GUZZI -AP8133594- More informationQuantity required : 1 |
||||||
|
10 |
2B001983 - VIS TUYAU FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/0/7/7/img/49077.jpg)
11 |
FRONT BRAKE MASTER CYLINDER SUPPORT- "PIAGGIO GENUINE PART" APRILIA 750-1200 DORSODURO, 1000 TUONO, 1200 CAPONORD -AP8134899- More informationQuantity required : 1 |
||||||
|
12 |
AP8134167 - PLAQUETTE TUYAU FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
13 |
AP8152272 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
14 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
15 |
AP8224470 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
15 |
AP8152280 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
16 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
16 |
AP8150474 - ECROU BORGNE INOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
17 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
18 |
AP8101595 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
19 |
RUBBER PIPE ON BRAKE FLUID TANK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -890509- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/6/2/img/47462.JPG)
20 |
AP8124288 - INTERRUPTEUR STOP More informationQuantity required : 1 |
||||||
|
21 |
AP8213299 - VIS CALOTTE More informationQuantity required : 2 |
||||||
|
22 |
AP8104606 - COLLIER More informationQuantity required : 1 |
||||||
|
23 |
AP8154090 - SUPPORT RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/2/0/img/50920.jpg)
24 |
AP8150537 - VITE TBEI M6 X 12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
24 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
25 |
658830 - RONDELLE More informationQuantity required : 2 |
