Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

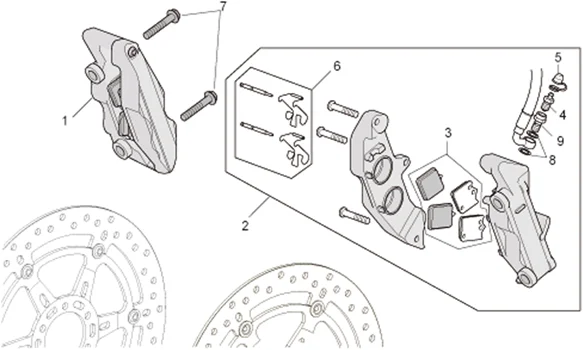

Chassis : 28.35 PINCE FREIN AV I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/318/RSV_1000_Tuono_2006-2009_28.35.PNG)
1 |
AP8133880 - PINCE FREIN AV D More informationQuantity required : 1 |
||||||
|
2 |
AP8133881 - PINCE FREIN AV G More informationQuantity required : 1 |
||||||
|
3 |
AP8133886 - PASTIGLIE 4 PZ More informationQuantity required : 2 |
||||||
|
4 |
AP8133595 - PURGE AIR; More informationQuantity required : 2 |
||||||
|
5 |
AP8113070 - CAPUCHON RENIFLARD More informationQuantity required : 2 |
||||||
|
6 |
AP8133593 - GOUJON+RESSORT PINCE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/3/img/71983.jpg)
7 |
SCREW - BRAKE CALIPER FASTENING (M10X1.25X55) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4, TUONO, 750 SHIVER, DORSODURO/MOTO-GUZZI 1400 CALIFORNIA, 1200 STELVIO, GRISO -AP8152414- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/5/4/img/71654.jpg)
9 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" MOTO-GUZZI BREVA, STELVIO, GRISO, NORGE, SPORT, BELLAGIO -AP8133597- More informationQuantity required : 1 |
