Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

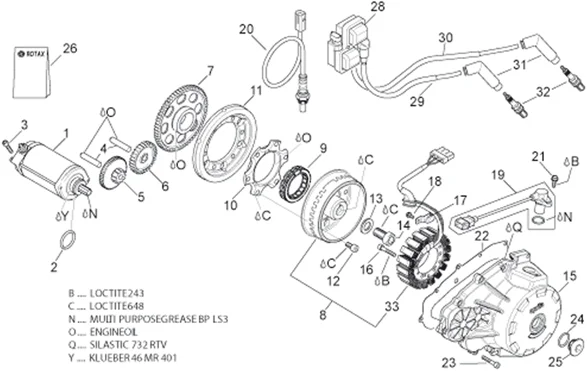

Moteur : 29.62 GROUPE ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/318/RSV_1000_Tuono_2006-2009_29.62.PNG)
1 |
AP0685965 - DEMARREUR More informationQuantity required : 1 |
||||||
|
2 |
AP0250140 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
3 |
AP0840882 - VIS More informationQuantity required : 2 |
||||||
|
4 |
AP0229302 - PIVOT More informationQuantity required : 2 |
||||||
|
4 |
AP0229302 - PIVOT More informationQuantity required : 2 |
||||||
|
5 |
AP0634740 - ENGRENAGE DOUBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/2/6/6/img/38266.jpg)
7 |
"ONE WAY" STARTER PINION "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, RSV-2, TUONO -AP0659110 - More informationQuantity required : 1 |
||||||
|
8 |
AP0296988 - ALLUMAGE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/7/5/img/44475.jpg)
9 |
AP0659110 - ROUE LIBRE More informationQuantity required : 1 |
||||||
|
10 |
FLANGE ON ELECTRIC STARTER FREEWHEEL "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, RSV-2, TUONO -AP0659550- More informationQuantity required : 1 |
||||||
|
11 |
AP0265045 - MASSA ROTANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/1/7/img/127117.jpg)
12 |
2R000271 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/3/5/2/img/44352.jpg)
13 |
IGNITION STATOR WASHER"PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, FUTURA, RSV-2, TUONO -AP0627270- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/1/5/img/127115.jpg)
14 |
SCREW - FOR IGNITION ROTOR (16X30) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FUTURA, FALCO, CAPONORD -2R000261- More informationQuantity required : 1 |
||||||
|
15 |
AP0610706 - COPERCHIO ACCENSIONE More informationQuantity required : 1 |
||||||
|
16 |
AP0241816 - VIS More informationQuantity required : 3 |
||||||
|
17 |
AP0251390 - SCHERMO PROTEZIONE CAVO More informationQuantity required : 1 |
||||||
|
18 |
AP0941935 - VIS TARAUD More informationQuantity required : 1 |
||||||
|
19 |
PICK-UP/SENSOR "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2 -AP0966570- More informationQuantity required : 1 |
||||||
|
20 |
AP0266030 - SONDA LAMBDA More informationQuantity required : 1 |
||||||
|
21 |
AP0240580 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/6/6/img/44466.jpg)
22 |
GASKET FOR IGNITION COVER "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, RSV-2, TUNO V2, FUTURA -AP0650341- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/2/4/img/44524.jpg)
23 |
AP0840880 - VIS More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/2/7/7/img/44277.jpg)
24 |
O'RING GASKET -FOR IGNITION COVER "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, RSV-2, FUTURA, TUONO, 125 RS, RX, SX -AP0430782- More informationQuantity required : 1 |
||||||
|
25 |
CAP 2R000528- More informationQuantity required : 1 |
||||||
|
26 |
AP0294354 - KIT REP DEM More informationQuantity required : 1 |
||||||
|
28 |
AP0266070 - BOBINA ACCENSIONE DOPPIA More informationQuantity required : 1 |
||||||
|
29 |
AP0266140 - CAVO ACCENSIONE ANT. More informationQuantity required : 1 |
||||||
|
30 |
AP0266145 - CAVO ACCENSIONE POST. More informationQuantity required : 1 |
||||||
|
31 |
AP0265246 - PIPE BOUGIE INT.; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/0/3/img/71103.jpg)
32 |
SPARK PLUG NGK DCPR9E "PIAGGIO GENUINE PART" APRILIA 1000 RSV, FALCO, TUONO, FUTURA, PEGASO -AP0297942- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/9/7/img/44497.jpg)
33 |
IGNITION STATOR "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V-2 -AP0685330- More informationQuantity required : 1 |
