Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

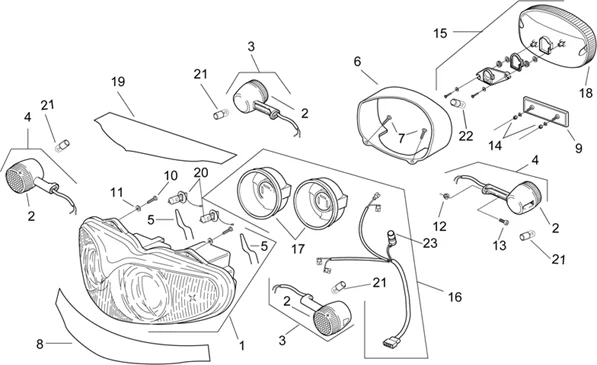

Chassis : 28.30 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.30.PNG)
1 |
AP8124429 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
1 |
AP8124513 - PHARE AVANT; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.JPG)
2 |
AP8212680 - VITRE CLIGNOTANT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/3/4/img/47434.jpg)
3 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" 50-125-250 RS 1999>2005, 125 CLASSIC -AP8124135- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/3/3/img/47433.jpg)
4 |
AP8124134 - CLIGNOTANT AV DROITE; More informationQuantity required : 2 |
||||||
|
7 |
AP8150371 - VIS More informationQuantity required : 2 |
||||||
|
8 |
AP8147546 - DECALCO INF. PROT. FEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.JPG)
9 |
AP8112916 - CATADIOPTRE FEU ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
10 |
AP8150270 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
11 |
AP8150158 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
12 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/6/img/71846.jpg)
13 |
AP8150252 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
14 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
|
15 |
AP8124492 - FEU ARRIERE; More informationQuantity required : 1 |
||||||
|
16 |
AP8124634 - CABLAGE FEU AV More informationQuantity required : 1 |
||||||
|
17 |
AP8124634 - CABLAGE FEU AV More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/3/4/0/img/57340.jpg)
18 |
LENS FOR TAIL LAMP "PIAGGIO GENUINE PART" APRILIA 50-125-250 RS 1999>2005 -AP8224277- More informationQuantity required : 1 |
||||||
|
19 |
AP8147545 - DECALCO SUP. PROT.FEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
22 |
LIGHT BULB FOR TAILLIGHT 12V-5/21W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -129953- More informationQuantity required : 1 |
