Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

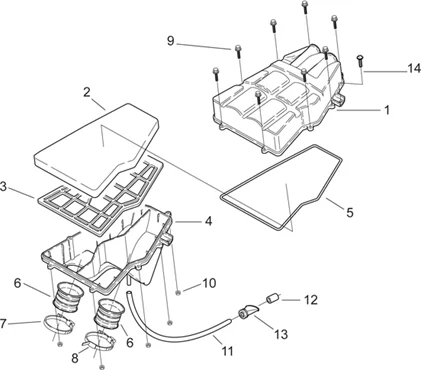

Chassis : 28.21 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/6/8/1/img/48681.jpg)
1 |
AIR BOX COVER "PIAGGIO GENUINE PART" 250 RS 1995>2003 -AP8131906- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/3/img/71173.jpg)
2 |
AIR FILTER "PIAGGIO GENUINE PART" APRILIA 250 RS 1998>2003 -AP8102351- More informationQuantity required : 1 |
||||||
3 |
AP8131905 - GRILLE FERMET.FILTRE; More informationQuantity required : 1 |
||||||
|
5 |
AP8120950 - JOINT CORPS FILTRE More informationQuantity required : 1 |
||||||
|
6 |
AP8120837 - MANCHON D'ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/8/img/71178.jpg)
8 |
AP8102401 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.JPG)
9 |
AP8152274 - VIS BRIDE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/6/img/50826.jpg)
10 |
AP8150025 - ECROU More informationQuantity required : 8 |
||||||
|
11 |
AP8102459 - TUBE PURGE C.FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
14 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 2 |
