Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

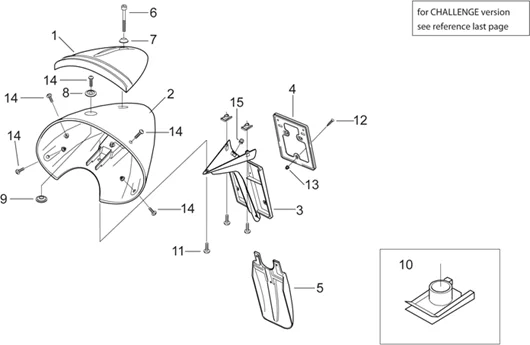

Chassis : 28.15 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.15.PNG)
1 |
AP8129189 - SELLE PASSAGER NOIRE; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8168792 - QUEUE, NOIR; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8149894 - QUEUE, NOIR D./GRISE S.; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8149019 - QUEUE CAR.P.JAUNE C.GRIS NIK; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8149003 - QUEUE, ROUGE/NOIR; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8139385 - QUEUE, NOIR; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8138907 - QUEUE, ROUGE CERISE; More informationQuantity required : 1 |
|||||||||
|
3 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" APRILIA 50-125-250 RS 1999>2005, 50-125 TUONO 2003>2004 -AP8126583- More informationQuantity required : 1 |
|||||||||
|
4 |
AP8126115 - PORTE-PLAQUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/8/6/8/img/47868.jpg)
5 |
NUMBER PLATE EXTENSION "PIAGGIO GENUINE PART" APRILIA 50-125 RS 1999>2005, TUONO 2003>2004, 250 RS 1998>2003 -AP8126641- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/4/img/50844.jpg)
6 |
AP8150157 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/9/img/71489.jpg)
7 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, 1000 CAPONORD/MOTO-GUZZI 1200 STELVIO -AP8121819- More informationQuantity required : 1 |
|||||||||
|
8 |
AP8121295 - DOUILLE BOUCH Q CAREN More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/7/2/img/46772.jpg)
9 |
AP8121296 - ECROU AUTOBL.TARAUD More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
10 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/2/img/71972.jpg)
11 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8152338- More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/3/img/71923.jpg)
12 |
AP8152166 - VIS FHC More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/4/img/97064.jpg)
15 |
AP8120223 - CAOUTCHOUC More informationQuantity required : 2 |
|||||||||
