Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

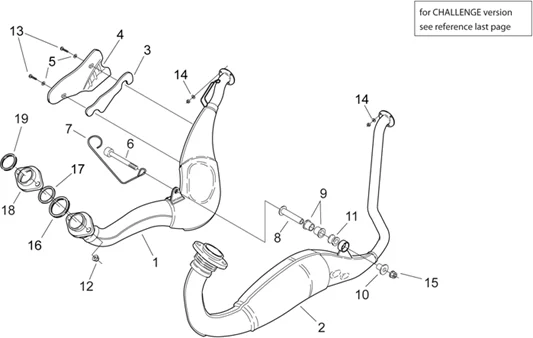

Chassis : 28.25 GROUPE ECHAPPEMENT I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.25.PNG)
1 |
AP8119332 - POT DROIT More informationQuantity required : 1 |
||||||
|
2 |
AP8119333 - POT GAUCHE More informationQuantity required : 1 |
||||||
|
2 |
AP8119392 - POT CATALYTIQUE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
5 |
AP8150015 - RONDELLE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/6/9/img/50869.jpg)
6 |
SCREW - ENGINE FIXING SCREW "PIAGGIO GENUINE PART" APRILIA 50 RS, 125 RX, SX, 125 MOJITO -AP8150388- More informationQuantity required : 1 |
||||||
|
8 |
AP8134334 - SUPPORT POT D'ECHAPPEMENT; More informationQuantity required : 1 |
||||||
|
9 |
AP8120947 - CAOUTCHOUC POT More informationQuantity required : 2 |
||||||
|
10 |
AP8221056 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
|
11 |
AP8120948 - CAOUTCHOUC POT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.JPG)
12 |
2B004511 - ECROU More informationQuantity required : 4 |
||||||
|
12 |
2B004511 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
13 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
14 |
AP8150178 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
15 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 1 |
||||||
|
16 |
AP8119356 - JOINT BRIDE POT D'ECHAPPEMENT More informationQuantity required : 2 |
||||||
|
17 |
AP8119358 - JOINT BRIDE POT D'ECHAPPEMENT More informationQuantity required : 2 |
||||||
|
18 |
AP8106295 - BRIDE POT More informationQuantity required : 2 |
||||||
|
19 |
AP8119357 - JOINT BRIDE POT D'ECHAPPEMENT More informationQuantity required : 2 |
