Vehicle Exploded View - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

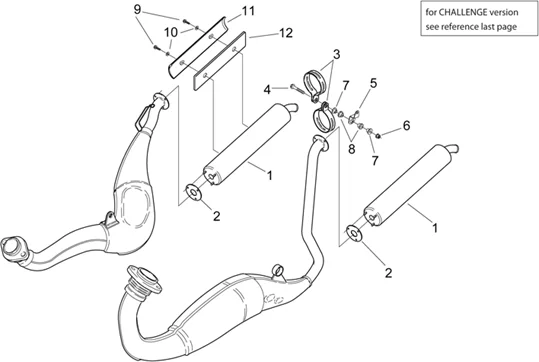

Chassis : 28.26 GROUPE ECHAPPEMENT II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_28.26.PNG)
1 |
AP8119384 - SILENCIEUX INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/5/8/img/46658.jpg)
2 |
AP8120812 - JOINT SILENCIEUX More informationQuantity required : 2 |
||||||
|
3 |
AP8102430 - COLLIER SILENCIEUX More informationQuantity required : 2 |
||||||
|
3 |
AP8102744 - COLLIER SILENCIEUX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
4 |
AP8152290 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
6 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 1 |
||||||
|
7 |
AP8121716 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
|
8 |
AP8120638 - SILENTBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
9 |
AP8152277 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
10 |
AP8150015 - RONDELLE More informationQuantity required : 6 |
||||||
|
11 |
AP8117100 - GRILLE PROTEC. POT More informationQuantity required : 2 |
||||||
|
12 |
AP8117105 - TTLE PROTECT. POT More informationQuantity required : 2 |
